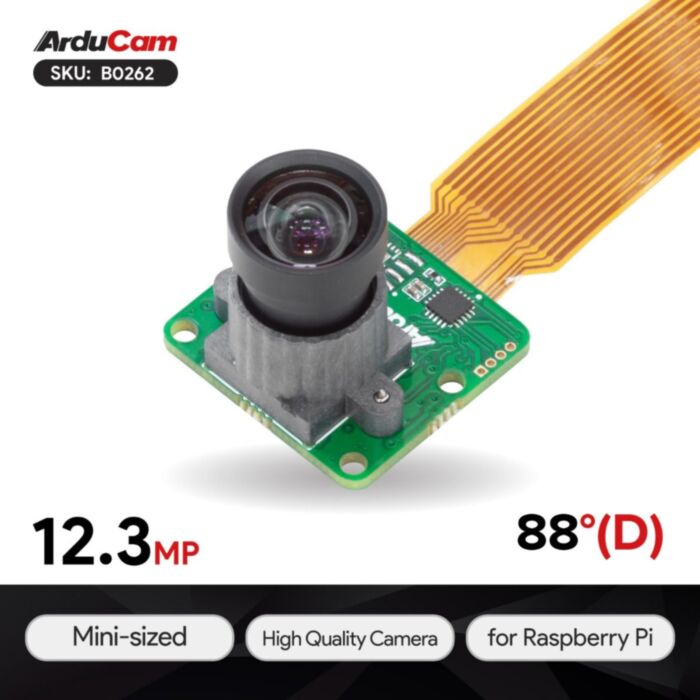

Arducam 12MP IMX477 Mini High Quality Camera Module

SKU: AC-B0262 Brand: Arducam

Time to enjoy a smooth upgrade for your Raspberry Pi to the 12MP HQ camera!

$139.95 AUD, inc GST
$127.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 5-10 $122.14 (exc GST)
  • 10+ $118.32 (exc GST)
- +

9 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Time to enjoy a smooth upgrade for your Raspberry Pi to the 12MP HQ camera! This Arducam 12MP camera module for Raspberry Pi has the same camera board size and mounting holes as the Raspberry Pi Camera Module V2, so no major hardware modifications are needed to ditch your 8MP IMX219 and embrace Arducam. Space- and weight-constrained applications, such as drones, also benefit from this camera, because it keeps the same imager performance and same control commands as the official Raspberry Pi High-Quality Camera, while offering a much smaller size and lighter weight, as well as interchangeable M12 lenses.

Applications

  • UAV/Drones/FPV camera
  • Machine Vision
  • Robotics
  • Face Recognition
  • Defect Detection, etc.

Specifications

Optical Size 1/2.3" (diagonal 7.857mm)
Resolution 12.3MP
Active Pixels 4056(H) x 3040(V)
Pixel Size 1.55um x 1.55um
Frame Rates 1080p@30fps, 720p@60fps and 640×480p@60/90fps
Shutter Type Rolling Shutter
Interface 2-lane MIPI CSI-2
Default Lens Mount M12-Mount
Lens Type Low Distortion M12 Lens
Focal Length 3.9mm
F.NO 2.8
Focus Type Manual Focus
Field of View(FOV) 75°(H)
IR Sensitivity Integral 650nm IR fliter, visible light only
Peaking Current 300mA
Camera Board Size 24mm x 25mm

Lens Options

SKU

LN059

LN036

LN058

LN024

LN053

LN033

LN069

LN064

LN056 LN031

Part No

M17350H08

M2025ZM02

M231250H03

M2306ZM13

M23390H08

M23356H09

M23270H10

M23325H12

M23272M14

M25156H18

Optical Format 1/2.3' 1/2.3' 1/2.3'' 1/2.3'' 1/2.3'' 1/2.3'' 1/2.3” 1/2.3'' 1/2.3'' 1/2.3'
EFL(mm) 35.00 25.00  12.50 6.00 3.90 3.56 2.70 3.25 2.27 1.56
BFL(mm) 5.50 5.20  2.11 7.56 4.49 5.92 4.97 4.10 3.01 4.30
Construction 5G 6G 6G+IR 6G+IR 6G+IR 4G3P+IR 5G2P+IR 7G+IR 8G+IR 6G+IR
F/NO 3.0 2.0  2.35 2.0 2.8 2.5 2.8 2.2 2.5 2.0
HFOV on 1/2.3‘’ Cam 20° 30° 50° 75° 90° 100° 120° 140° 180°
IR filter No IR filter No IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter
MOD 0.35m 0.20m  0.30m 0.30m 0.30m 0.20m 0.30m 0.30m 0.20m 0.20m

Size(mm)

22x 29.3 17 x 21 14 x 22.72 16x 16.41 14x 18.67 14x 16.3 16x 18.43 17x 19 17.2x 22 20x 17.3

NOTE: The M12 Lens kit for the HQ Camera module, please check LK003, 6 lenses are included.

Package Includes

  • 1 x 12.3MP color camera modulem with 3.9mm focal length M12 mount lens
  • 1 x 150mm/12inch 15pin to 22pin camera cable
  • 1 x 80mm/3.1inch 22pin camera cable

Note

  • Raspberry Pi board is not included in the package
  • This camera module supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later)
