JTAG (2x10 2.54mm) to SWD (2x5 1.27mm) Cable Adapter Board

Rating:

100% of 100

SKU: ADA2094 Brand: Adafruit

This adapter board is designed for adapting a 'classic' 2x10 (0.1"/2.54mm pitch) JTAG cable to a slimmer 2x5 (0.05"/1.27mm pitch) SWD Cable. It's helpful for using...

$10.45 AUD, inc GST

$9.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $9.22 (exc GST)
25+ $9.03 (exc GST)

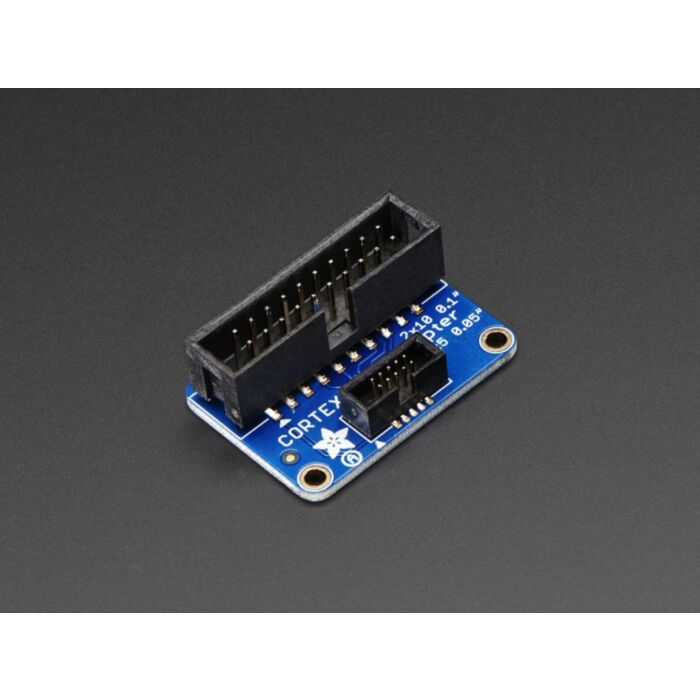

This adapter board is designed for adapting a 'classic' 2x10 (0.1"/2.54mm pitch) JTAG cable to a slimmer 2x5 (0.05"/1.27mm pitch) SWD Cable. It's helpful for using products like the JTAGulator or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector.

This board comes with no cables. It's really just the adapter - but is super helpful when you want to use JTAG debugging on boards that can't support 2x10 cables. We do stock the SWD cable if you need one here!

Technical Details

Dimensions w/components: 34mm x 24mm x 12mm / 1.3" x 0.9" x 0.5"
Weight: 5.7g
EagleCAD PCB Files on GitHub
Fritzing object available in Adafruit Fritzing library

This product is listed in:

Cables>Cable Assemblies
