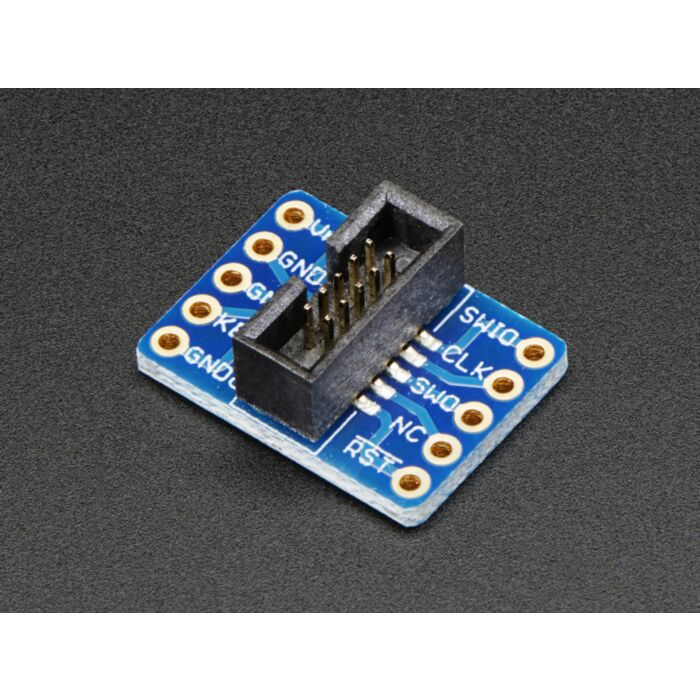

SWD (2x5 1.27mm) Cable Breakout Board

SKU: ADA2743

$3.50 AUD, inc GST
$3.18 AUD, exc GST

More Views

SWD (2x5 1.27mm) Cable Breakout Board
3.5 AUD

SKU: ADA2743

$3.50 AUD, inc GST
$3.18 AUD, exc GST
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This adapter board is designed to make it easier to use ARM dev boards that use slimmer 2x5 (0.05"/1.27mm pitch) SWD cables for programming.  It's helpful for using products like the JTAGulator, STLink or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector, often Cortex M0 or M3's.

This board comes with no cables.  It's really just the breakout board and some header if you need it - but is super helpful when you want to use JTAG/SWD debugging. We do stock the SWD cable if you need one here and have a 'classic' JTAG to SWD converter board here.
