Huge 6V 6W Solar panel - 6.0 Watt

SKU: ADA1525 Brand: Adafruit
These panels come to Adafruit from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch resistant, and UV resistant. They use a...
$164.95 AUD, inc GST
$149.95 AUD, exc GST

Quantity Discounts:

  • 5-10 $143.95 (exc GST)
  • 10+ $139.45 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

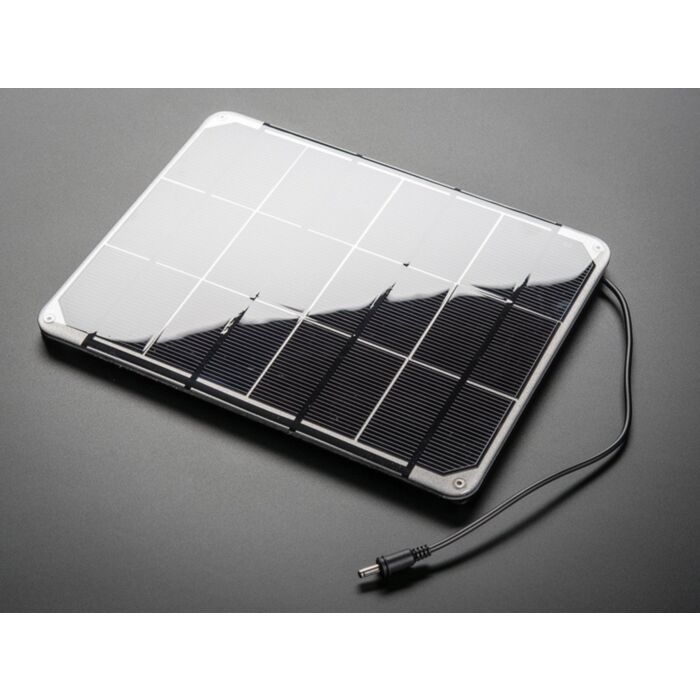

These panels come to Adafruit from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch resistant, and UV resistant. They use a high efficiency monocrystalline cell. They output 6V at 930 mA via 3.5mm x 1.1mm DC jack connector - a nice upgrade to the 2W or 3W panels Adafruit have been carrying. The substrate is an aluminum / plastic composite, specifically designed to be strong and lightweight. They can easily stand up to typical outdoor use including being dropped and leaned on. They're very high quality and suggested for projects that will be exposed to the outdoors. These now come with 4 plastic mounting screws which makes it easy to attach the panel, even to fabric!

To connect, we suggest a 3.5mm OD/1.1mm ID DC jack or you can use this handy 2.1mm adapter cable which will turn it into a standard 5.5mm/2.1mm DC plug

If you want to use this to charge a battery or run your project, check out Adafruit's optimized Solar Lithium Ion/Polymer charger!

For some nifty ideas on what to do with your solar panels, check out Voltaic's DIY page

Technical Details

  • Cell type: Monocrystaline
  • Cell efficiency: 19%+
  • 6.15 Watts Peak Power

Dimensions:

  • Length: 220mm / 8.7"
  • Width: 175mm / 6.9"
  • Thickness (without screws): 5mm / 0.2"
  • Thickness (with screws): 10mm / 0.4"
  • Bolt Positions (fixed on the solar panel): M3 bolts on a rectangle of 160x206mm concentric to the panel
  • Wire Length: 260mm / 10.2"
  • Weight: 225g

For product support, replacement parts, and warranty for all Voltaic products, click here!
