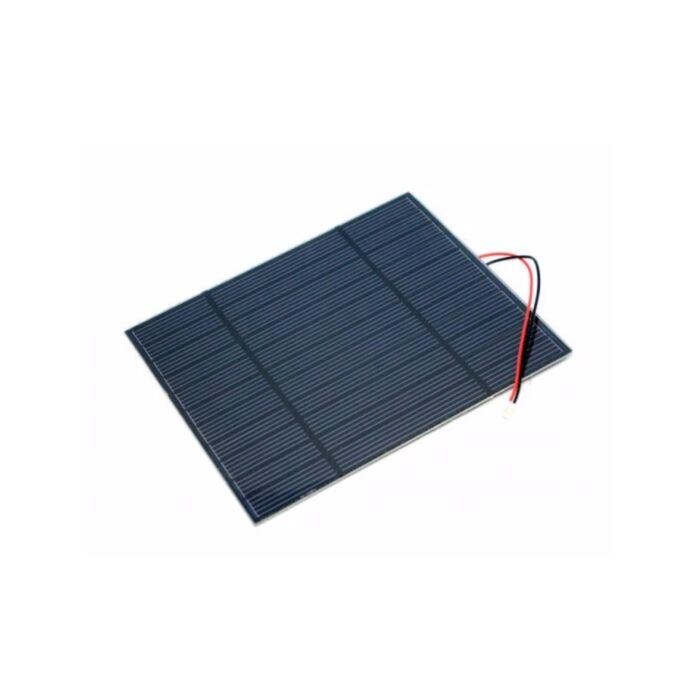

3W Solar Panel 138X160 (Seeed Studio)

SKU: SS313070001 Brand: Seeed Studio
This solar panel is made of single-crystal material that performs high solar energy transformation efficiency at 17%. It has a fine resin surface and sturdy...
$33.35 AUD, inc GST
$30.32 AUD, exc GST

Quantity Discounts:

  • 10-25 $29.11 (exc GST)
  • 25+ $28.20 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This solar panel is made of single-crystal material that performs high solar energy transformation efficiency at 17%. It has a fine resin surface and sturdy back suitable for outdoor environments. A 2mm JST connecter is attached to the penal, which makes it perfect to team up with most of our can-use-solar-power-supply boards, like Seeeduino microcontroller series, Lipo Rider charging boards series, and XBee carrier WSN products series.

The typical open circuit voltage is around 5V, depending on light intensity. In those bright summer days with clear sky and big sun, the peak OC voltage can rush up to 10V. To prevent any damage to boards that accept a narrow range of input voltage, like Lipo Rider, it's recommended to check whether the OC voltage is safe before any connection.



FEATURES

  • Dimensions: 160x138x2.5(±0.2) mm
  • Typical voltage: 5.5V
  • Typical current: 540mA
  • Open-circuit voltage: 8.2 V
  • Maximum load voltage: 6.4V



DOCUMENTS

Please visit our wiki page for more info about this product. It will be appreciated if  you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.









This product is listed in:

Power & Batteries>Solar Power>Panels
