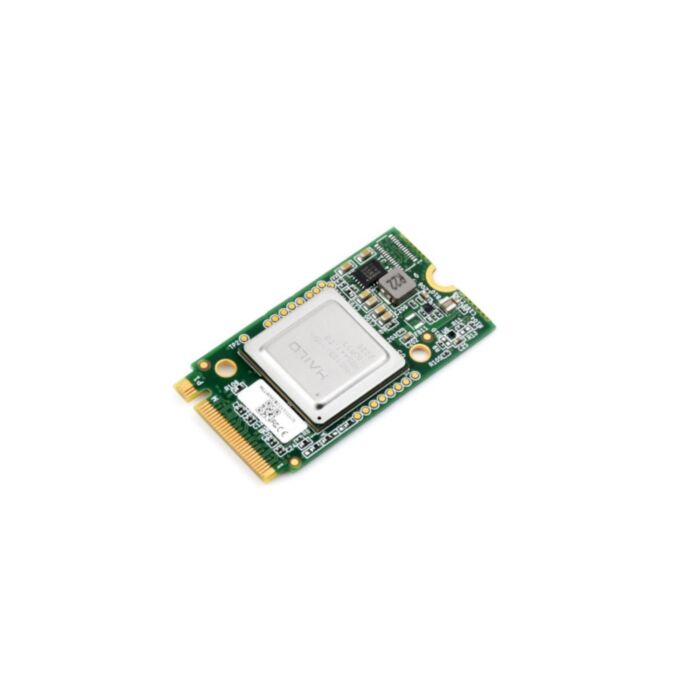

Hailo-8 M.2 AI Accelerator Module (26 TOPS)

SKU: WS-27812 Brand: Waveshare

Retired Product

Replaced by: CE09994
This product has been replaced by: CE09994
This product is no longer available. This page is only for reference.

Hailo-8 M.2 AI Accelerator Module, based on the 26TOPS Hailo-8 AI processor, Supports Linux/Windows Systems

Note: Does not include PCIe adapter, we stock several options

Features

  • Hailo-8 AI M.2 module
    • Powered by 26 Tera-Operations Per Second (TOPS) Hailo-8 AI Processor
    • 2.5W typical power consumption
    • Scalable,enabling simultaneous processingof multi-streams & multi-models
    • Enabling real-time, low latency and high-efficiency AI inferencing on the edge devices
    • Supports TensorFlow, TensorFlow Lite, ONNX, Keras, Pytorch frameworks
    • Supports Linux and Windows
    • Supports the temperature range of -40°C to 85°C

Hailo-8 AI M.2 Module Parameters

AI performance 26 TOPS
Form Factor M.2 Key M
Power supply 3.3V ± 5%
Power consumption 2.5W (Typ.) 8.65W (Max.)
Interface PCIe Gen3, 4-lane
Certificate CE, FCC Class A
Storage temperature -40 ~ 85°C
Operating temperature -40 ~ 85°C
Operating humidity 5% ~ 90%RH (no frosting)
Dimensions 22×80mm with breakable extensions to22×42mmand 22×60mm

Equipped with Hailo-8 AI Accelerator to Step Up Your Edge Product Performance

Performance parameters

NN Model Input Resolution mAP Hailo-8L FPS(batch8)
yolov4_tiny yolov4_tiny 18.98 610
yolov6n yolov6n 34.3 345
yolov7 yolov7 49.8 45
yolox_s_wide yolox_s_wide 42.4 75
yolov3 yolov3 38 26
yolov8n yolov8n 37.23 270
yolov8s yolov8s 44.75 128
yolov8m yolov8m 50.08 55
Type NN Model Input Resolution FPS Power(W) FPS/W
Classification ResNet-50 v1 224x224 1332 3.45 386
MobileNet_v2_1.0 224x224 2444 2.152 1135
EfficientNet_M 240x240 889 3.5 254
Object Detection SSD_MobileNet_v1 300x300 1055 2.2

Resources

Wiki for Hailo-8 M.2 AI Accelerator Module (26 TOPS)
