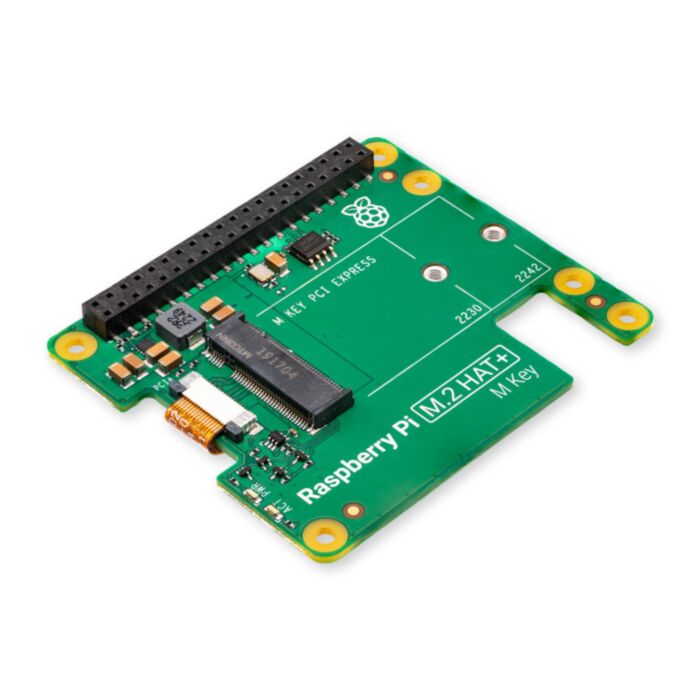

Raspberry Pi 5 M.2 HAT

Rating:
100% of 100
SKU: CE09773 Brand: Raspberry Pi Guides (4)

Connect M.2-format PCIe and NVMe devices to your Raspberry Pi 5 with the M.2 HAT.

$20.06 AUD, inc GST
$18.24 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 10th of Dec

- +

64 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm- pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices.

The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place. Extra-long stackable headers are needed when using the active cooler.

Does not include SSD, we recommend the Corsair Force MP600

Specs & Compatibility Information

  • Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
  • Supports devices that use the M.2 M key edge connector
  • Supports devices with the 2230 or 2242 form factor
  • Capable of supplying up to 3A to connected M.2 devices
  • Includes power and activity LEDs
  • Conforms to the Raspberry Pi HAT+ specification

Supplied with ribbon cable, 16mm stacking header, threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral
