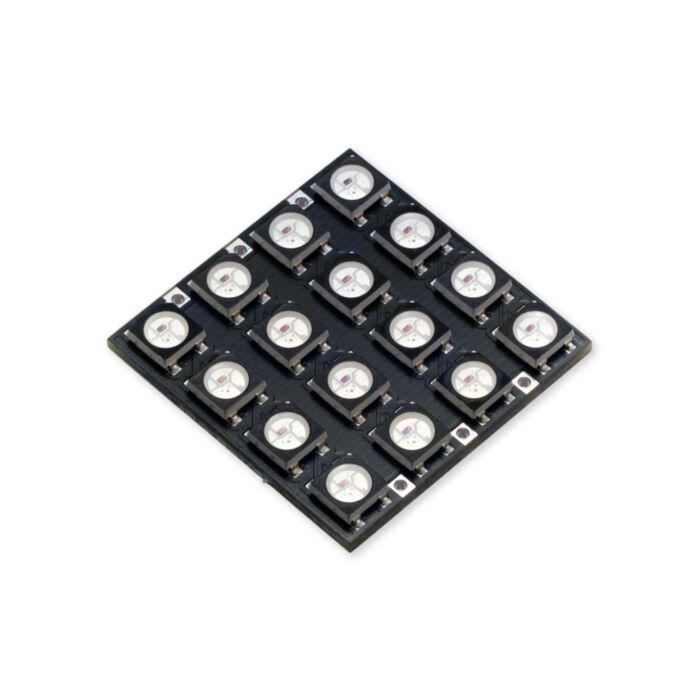

GlowBit™ Matrix - 4x4
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 31st of Dec
Quantity Discounts:
- 4-12 $5.87 (exc GST)
- 12+ $5.56 (exc GST)
- 50+ $5.25 (exc GST)
Recommended Essentials:
The
Matrix 4x4 has 16 addressable RGB LEDs which can be used as a single device or tiled into larger displays.
The GlowBit getting started guide for Raspberry Pi or Pico and covers everything from lighting individual pixels and graphing, to creating colourful animations.
GlowBit libraries are optimised for better performance with newer WS2812B LED technology. Legacy WS2812 and NeoPixel libraries will work just fine with GlowBit hardware.
Features
- 16 vibrant LEDs
- Control from a single pin
- Works with Raspberry Pi and Raspberry Pi Pico using our open-source Python/MicroPython library (documentation)
- Easy connection options: through-hole pads for header pins and solderable edge-connectors for tiling larger displays.
- Quickstart guide and instructions
- Manufactured and supported in Australia by Core Electronics
Library Features - We've prepared some creative ideas to get you started programming your GlowBit Matrix in Python and MicroPython
- Colour Wheel Generate vibrant rainbow colours
- Colour Individual Pixels Manually control each of the 64 pixels
- Graphs Easily display sensor data
- Tiling Control daisy-chained arrays with minimal code changes
Technical Details
- Dimensions: 30.5x30.5mm
- Supply (Vdd): 3.3 to 5 VDC
- Logic: 2.7 to Vdd + 0.7 V
- Through-hole pads are placed on a 2.54mm grid for easy mounting and tiling on standard perfboard.
Resources
Each GlowBit Matrix 4x4 comes as a single board with 16 individually addressable RGB LEDs - assembled and tested.
GlowBit Overview
Glow your own way! GlowBits are based on newer LED technology that offers makers, educators and students more creative freedom with fewer gotchas. Wider voltage ranges, better data rates, safe failure modes, the list goes on. If you share anything with a GlowBit product, tag it with #glowbit so we can take a look!
Some of the features you will find:
- Awesome, feature-rich libraries. The same Python/MicroPython code examples will work on all supported platforms.
- Tileable designs. Many GlowBit modules are tileable, meaning they can be soldered together to create a larger display.
- Modern WS2812B technology which supports a wide voltage range, is easier to use, and requires fewer external components.
- Creative freedom. Take the examples in our guides and run with them - we can't wait to see what you make.
- Compatible with legacy WS2812 / Neopixel libraries.
GlowBit modules are
products designed and manufactured by our team in Newcastle Australia.
"GlowBit" and the GlowBit logo are trademarks of Core Electronics Pty Ltd.
