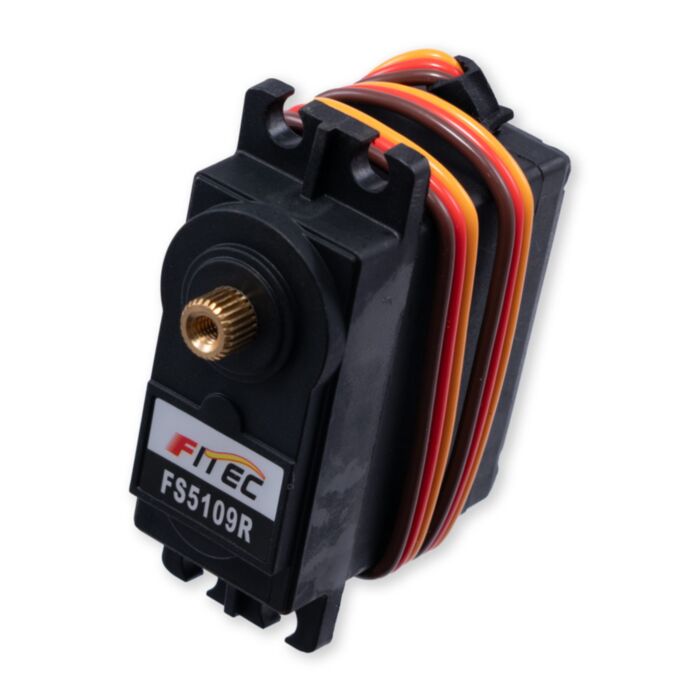

FS5109R - Standard Continuous Rotation Servo (10kg/cm)

SKU: CE09388 Brand: Feetech

Does your project need a small but powerful motor to drive a gear or wheel? The FS5109R might be for you!

$22.90 AUD, inc GST
$20.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 8-50 $19.57 (exc GST)
  • 50+ $18.32 (exc GST)
- +

74 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

A step up from the FS90R/MR, the FS5109R is a powerful continuous rotation servo capable of hauling your hefty robots around,

We recommend these 90mm diameter wheels, for driving robots and if you want to 3D print an attachment use the included servo-horns!

Specifications

  • Model: FS5109R
  • Weight: 60g
  • Arm Angle Limit: Continuous Rotation
  • Operating Voltage: 4.8V - 8.4V
  • No load current: 150mA @ 6V
  • Rated Continuous torque: 3.4kg/cm @ 6V
  • Peak Torque: 10.2kg/cm @ 6V
  • Stall Current: 1.7A
  • Gear Type: Metal Gear
  • Pulse Width Range:
    • 1000-2000 µsec
  • Size: 40mm x 20mm x 39mm
  • Spline: 25T

Includes

  • FS5109R Continuous Rotation Servo
  • Compatible servo horn pack with fasteners
