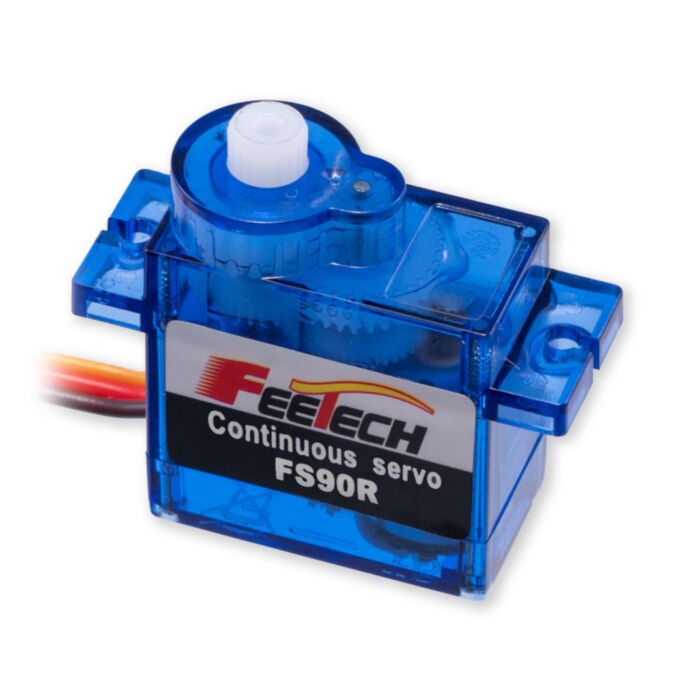

9g Continuous Rotation Servo - FS90R (1.5kg/cm)

Rating:
100% of 100
SKU: CE09377 Brand: Feetech

Continuous rotation servos are perfect for adding small form factor motors and wheels to robots.

$6.95 AUD, inc GST
$6.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 4th of Mar

Quantity Discounts:

  • 6-50 $5.81 (exc GST)
  • 50+ $5.37 (exc GST)
- +

14 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Create your own small form-factor robot with these FS90R servo motors.

Adjust the zero or middle point by adjusting the potentiometer underneath with a screwdriver. A middle point is a pulse width where the servo motor isn't moving. Higher pulse widths will start the motor moving in a clockwise direction and lower, counter-clockwise.

Grab a couple of these sweet wheels to add motion or use the included horns to drive gears or push-rods.

If you need a bit more torque for the same size and voltage check out this version with metal gears.

Specifications

  • Model: FS90R
  • Weight: 9g
  • Arm Angle Limit: No Limit
  • Operating Voltage: 4.8V - 6V
  • No load current: 130mA @ 6V
  • Rated Continuous torque: 0.5kg/cm @ 6V
  • Peak Torque: 1.5kg/cm @ 6V
  • Stall Current: 800mA
  • Gear Type: Plastic Gear
  • Size: 22.5mm x 12.1mm x 27.7mm
  • Spline: 21T

Includes

  • FS90R Continuous Rotation Servo
  • Servo Horn and fastener pack

Dimension Drawing

fs90r dimension drawing

Examples

Raspberry Pi Pico - Micropython

import machine
import utime

pwm1 = machine.PWM(machine.Pin(0))
pwm1.freq(50)

min_s = 1300
max_s = 8500

mid_p = int((max_s - min_s)/2)

def map_range(x, in_min, in_max, out_min, out_max):
    mapped = (x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min
    return int(max(min(mapped, out_max), out_min))

def servo_wrapper(val):
    return map_range(val, 0, 180, 1500, 8000)

# Useful while attaching servo horns
# or finding the zero-point for continuous servos

# while True:
#     pwm1.duty_u16(mid_p)

while True:
    for i in range(0,180,10):
        print('Angle/Speed ', i)
        pwm1.duty_u16(servo_wrapper(i))
        utime.sleep(0.2)

    for i in range(180,0,-10):
        print('Angle/Speed ', i)
        pwm1.duty_u16(servo_wrapper(i))
        utime.sleep(0.2)
