Mounting Bracket for Standard-Size Servos

SKU: POLOLU-3435 Brand: Pololu

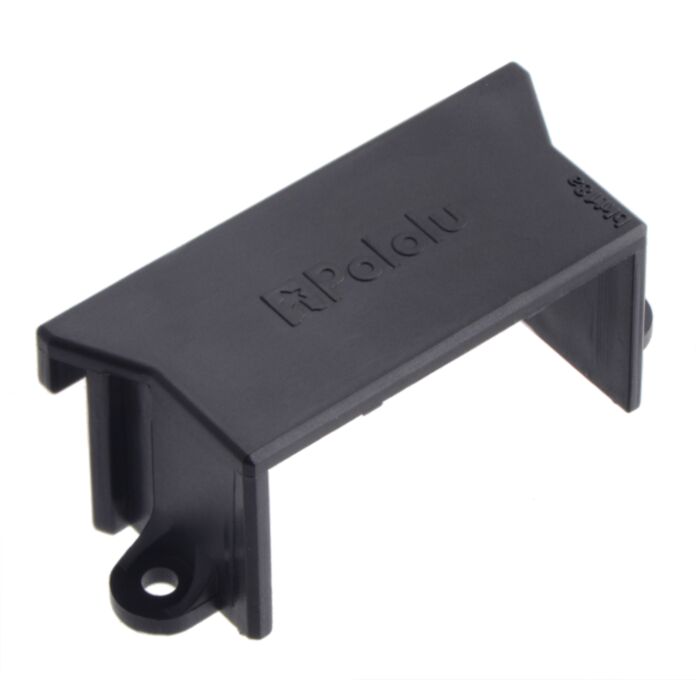

This plastic bracket provides a convenient way to mount standard-size servos with a side flat to a surface...

$5.05 AUD, inc GST

$4.59 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 15

Quantity Discounts:

10-25 $4.45 (exc GST)
25+ $4.36 (exc GST)

Rear view of Power HD Continuous Rotation Servo AR-3606HB and Solarbotics red servo wheel with Mounting Bracket for Standard-Size Servos.

Power HD 1501MG servo with Mounting Bracket for Standard-Size Servos.

This plastic mounting bracket is designed for use with standard-size servos like the Power HD AR-3606HB continuous rotation servo and the FEETECH FS5103B standard servo. By clasping around the servo and capturing its mounting tabs, this bracket provides an easy way to mount a servo on its side. The mounting holes on the bracket are intended for use with M3 or #4-40 screws (not included). This bracket works with most standard-size servos, including all the ones in this page’s related products list. Please note that the mounting tabs on some servos are too thick to fit in the bracket without modification, so Pololu recommend comparing your servo’s dimensions to the bracket’s dimensions below.

Dimensions

Dimension diagram of the Mounting Bracket for Standard-Size Servos. Units are mm over [inches].

This diagram is also available as a downloadable PDF (245k pdf)

People often buy this product together with:

Power HD High-Torque Servo 1501MG

Micro Maestro 6-Channel USB Servo Controller (Assembled)

Power HD Continuous Rotation Servo AR-3606HB

Dimensions

Weight:	5.5 g

General specifications

Color:	black

Identifying markings

Molded part dev codes:	bkt18a

File downloads

Dimension diagram of the Mounting Bracket for Standard-Size Servos (245k pdf)
3D model of the Mounting Bracket for Standard-Size Servos (1MB step)
