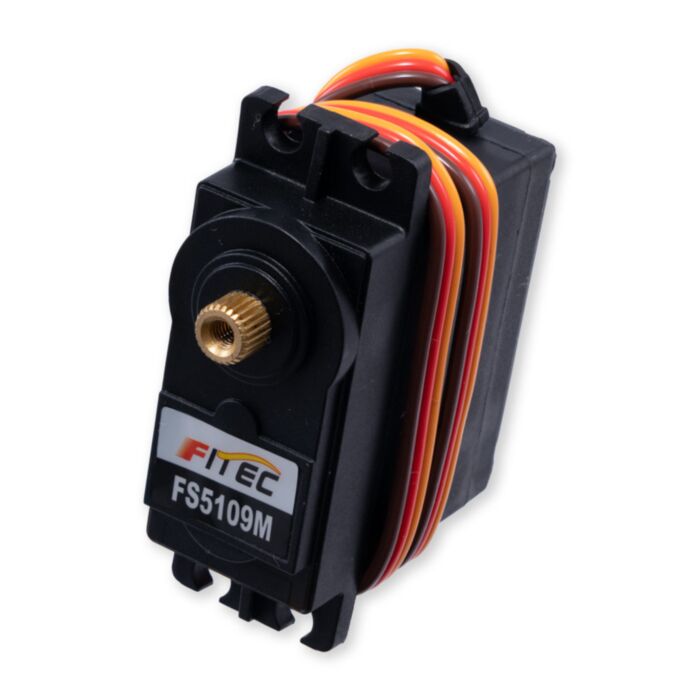

FS5109M - Standard Servo (10kg/cm)

Rating:
100% of 100
SKU: CE09387 Brand: Feetech

A standard size servo with a bit more power, perfect for your next robotics project!

$21.25 AUD, inc GST
$19.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 8-50 $18.16 (exc GST)
  • 50+ $17.00 (exc GST)
- +

38 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

A step up from the FS5103B - this servo has more push and shove than a lot of other servo's without chewing much power!

Specifications

  • Model: FS5109M
  • Weight: 60.7g
  • Arm Angle Limit: 180 degrees
  • Operating Voltage: 4 - 8.4V
  • No load current: 170mA @ 6V
  • Rated Continuous torque: 3.4kg/cm @ 6V
  • Peak Torque: 10.2kg/cm @ 6V
  • Stall Current: 1.7A @ 6V
  • Gear Type: Metal Gear
  • Angle Range:
    • 180 degrees @ 500 - 2500 µsec
  • Size: 22.5mm x 12.1mm x 22.4mm
  • Spline: 25T

Includes

  • FS5109M Standard Servo
  • Compatible servo horn pack with fasteners

This product is listed in:

Components & Parts>Motors>Servos>Standard
