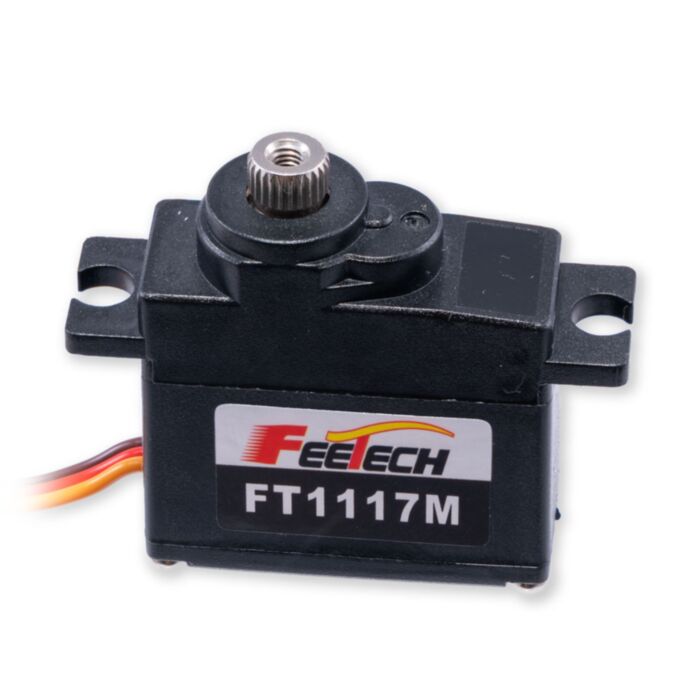

FT1117M - Small Servo (3.5kg/cm)

Rating:
100% of 100
SKU: CE09392 Brand: Feetech

The beefier bigger version of the FS90, the FT90 offers much more power in a similarly sized servo.

$12.60 AUD, inc GST
$11.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 31st of Dec

Quantity Discounts:

  • 8-50 $10.76 (exc GST)
  • 50+ $10.08 (exc GST)
- +

42 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The beefier bigger version of the FS90, the FT1117M offers much more power in the micro servo form factor.

Specifications

  • Model: FT1117M
  • Weight: 20.5g
  • Arm Angle Limit: 200 degrees
  • Operating Voltage: 4.8V - 6V
  • No load current: 150mA @ 6V
  • Rated Continuous torque: 1.16kg/cm @ 6V
  • Peak Torque: 3.5kg/cm @ 6V
  • Stall Current: 800mA
  • Gear Type: Metal Gear
  • Angle Range:
    • 120 degrees @ 900-2100 µsec
  • Size: 30mm x 12mm x 31mm
  • Spline: 21T

Includes

  • FT1117M Micro Servo
  • Compatible servo horn pack with fasteners

Dimension Drawing
