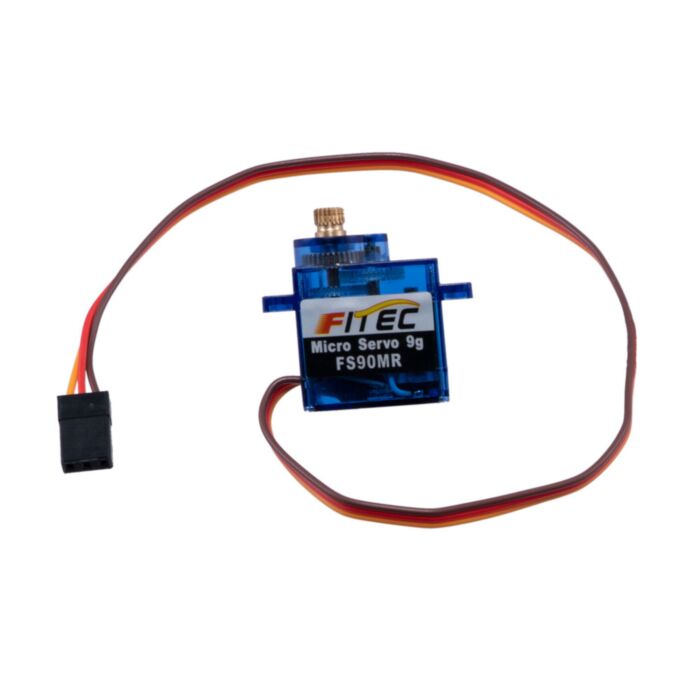

FS90MR 1.8kg Metal Gear Continuous Rotation Micro Servo

Rating:
100% of 100
SKU: CE09379 Brand: Feetech

Add some more power to the small form-factor-continuous rotation servo with this all metal upgrade

$8.30 AUD, inc GST
$7.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 6-50 $6.95 (exc GST)
  • 50+ $6.42 (exc GST)
- +

65 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Give a bit more juice to your wheeled robots, use these full metal gear servos to squeeze some more out!

If you need to keep rolling with a bit more power in the micro servo form look no further than these metal gear upgrades from the Maker-loved FS90R.

Specifications

  • Model: FS90MR
  • Weight: 13g
  • Arm Angle Limit: Continuous Rotation
  • Operating Voltage: 3.5V - 6V
  • No load current: 160mA @ 6V
  • Rated Continuous torque: 0.7kg/cm @ 6V
  • Peak Torque: 1.8kg/cm @ 6V
  • Stall Current: 800mA
  • Gear Type: Metal gear
  • Angle Range:
    • Continuous Rotation @ 1400 - 1600 µsec
  • Size: 22.5mm x 12.1mm x 26.7mm
  • Spline: 21T

Includes

  • FS90MR Continuous Rotation Micro Servo
  • Black Servo Horn and Fastener Pack

Dimension Drawing

fs90mr dimension drawing
