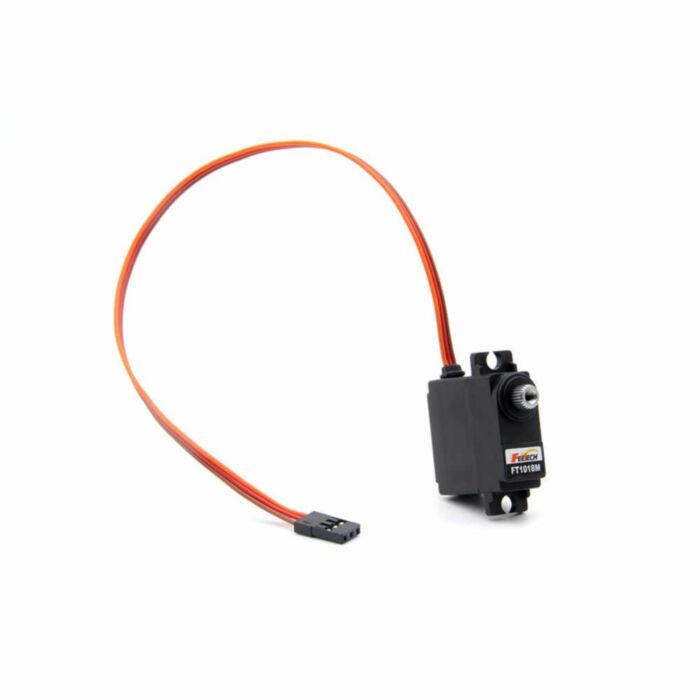

FT-1018M Micro Servo (7.5kg)
Achieve reliable positional control in space-constrained projects. This actuator delivers up to 7.5 kg/cm of torque and is compatible with 3.3V and 5V logic.
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
Quantity Discounts:
- 6+ $18.95 (exc GST)
- 50+ $17.50 (exc GST)
A high-performance "Mini" digital servo that packs a surprising punch for its size. Designed to sit comfortably between the standard 9g micro servo and the larger "Standard" servo class, it offers a robust solution for projects where space is limited but torque cannot be compromised.
Makers building 1/16 scale RC crawlers, walking or compact robots, often face a dilemma: micro servos strip their gears under load, while standard servos are too bulky to fit the chassis. The FT-1018 solves this by delivering an impressive 7.5 kg·cm of torque (at 7.4V) in a compact 20g package. Its ability to accept up to 8.4V means it can run directly off a 2S LiPo battery, eliminating the need for bulky BEC voltage regulators.
Built with a full-metal gear train and digital control circuitry, this servo provides precise 180-degree positioning and exceptional holding power. Whether you are upgrading the steering on a small RC vehicle or building a high-torque robotic gripper, the FT-1018 offers the durability and power density required for demanding applications.
Features
- High Torque, Compact Frame: Delivers 7.5 kg·cm of torque -nearly 5x that of a standard FS90 micro servo - while weighing only 20g.
- 2S LiPo Ready (High Voltage): Operates reliably up to 8.4V, allowing for simple, direct battery connections in portable projects without complex BEC wiring.
- All-Metal Gearing: Features a durable metal gear train designed to resist stripping during shock loads or stalls, essential for walking robots and RC steering.
- Digital Precision: Utilises digital control logic for sharper holding power and more accurate positioning compared to analogue alternatives.
Specifications
| Property | Specification |
|---|---|
| Dimensions | 29.2 × 13 × 29 mm |
| Weight | 20.1 g |
| Operating Voltage | 4.8V to 8.4V |
| Stall Torque @ 6V | ~6.0 kg·cm |
| Stall Torque @ 7.4V | 7.5 kg·cm |
| Operating Speed @ 6V | 0.16 sec/60° |
| Operating Speed @ 7.4V | 0.13 sec/60° |
| Operating Angle | 180° (Pulse: 500–2500 μs) |
| Gear Material | Metal |
| Motor Type | Core Motor |
| Connector Wire | Approx. 25 cm (JR-style) |
| Model | FT-1018-C001 |
