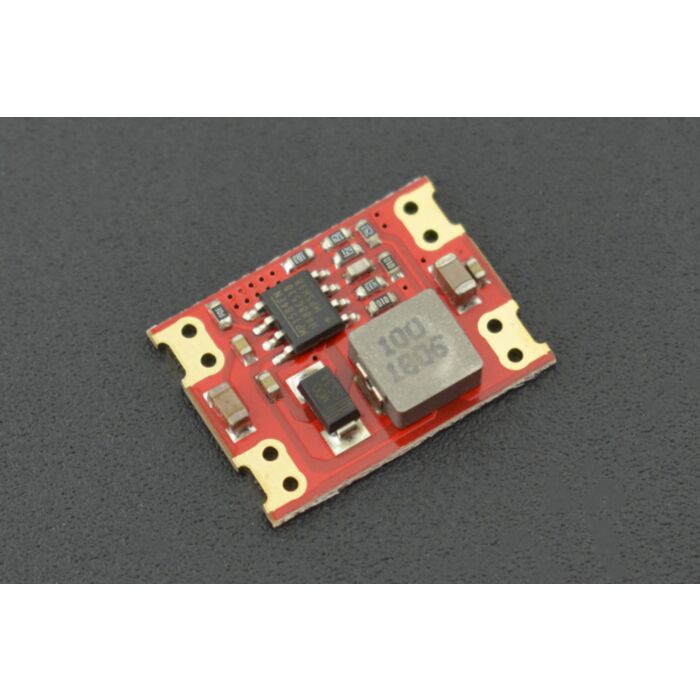

DC-DC Buck-Mode Power Module (8~28V to 5V 3A)

Rating:
100% of 100
SKU: DFR0571 Brand: DFRobot
This is a DC-DC buck-mode power module, with input voltage range 8V~28V and fixed output voltage/current 5V/3A. Its work frequency can reach to 0.5MHz. The module...
$5.60 AUD, inc GST
$5.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 10th of Dec

Quantity Discounts:

  • 10-25 $4.94 (exc GST)
  • 25+ $4.84 (exc GST)
- +

19 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a DC-DC buck-mode power module, with input voltage range 8V~28V and fixed output voltage/current 5V/3A. Its work frequency can reach to 0.5MHz. The module has high conversion rate and small size, easy to embed.

Besides, it has steady output voltage, which can work long time without voltage shift and is suitable for the occasions with high requirements. This product can work with some high-capacity and high-voltage batteries to DIY some mobile power. It can also be embedded into your project to provide multiple power options.

Features

  • Small size
  • Stable performance
  • Wide voltage range for a variety of DIY applications

Applications

Power supply for controller main-board, DIY current source, floodlight, DIY toy car, communication device, digital radio

Specifications

  • Input Voltage: 8~28Vdc
  • Output Voltage: 5V
  • Output Accuracy: ±0.1V
  • The Maximum Output Peak Current: 3A
  • Full-Load Output Ripple: Vpp<50mV
  • No-Load Current: IQ  0.5mA
  • Switch-Off Function: Not Support
  • Operating Temperature: -20°C ~ +85°C
  • Operating Humidity: 20% ~ 90% relative humidity, no condensation
  • Storage Temperature: -40°C ~ +125°C
  • Installation Method: Chip-mounting
  • With or Without Isolation: Without Isolation
  • Service Life: 30000h
  • Dimension : 16.5×22mm/0.65×0.87inch

NOTE

  1. The input voltage must within 28V.
  2. Load current should not be in 3A or above for a long time, otherwise, it will affect the service life of the module and even burn out.
  3. If the load current is relatively high, you should increase the minimum input voltage to ensure normal operation.

Contains

  • DC-DC Buck-Mode Power Module (8~28V to 5V 3A) x1
