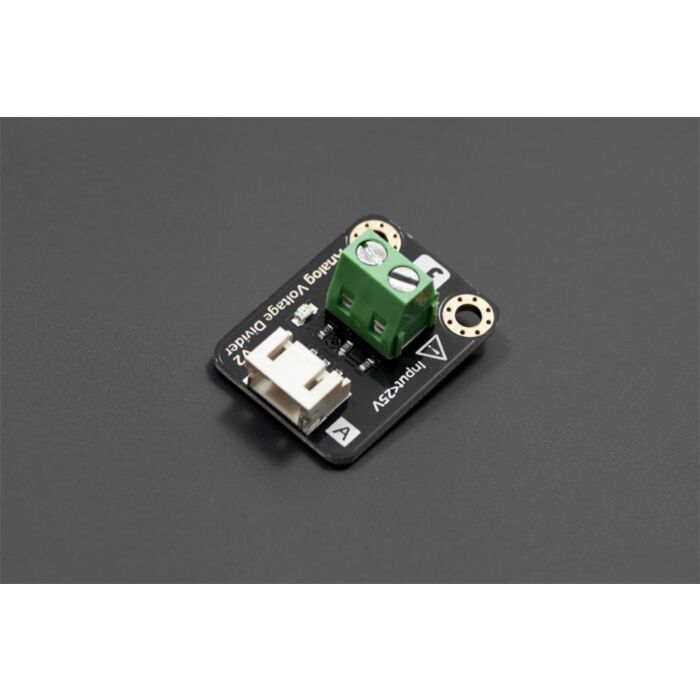

Analog Voltage Divider

SKU: DFR0051

$6.20 AUD, inc GST

More Views

Analog Voltage Divider
6.2 AUD

SKU: DFR0051

$6.20 AUD, inc GST
1 reviews 0 5 4
154 units ship in 3 to 5 days (delivered by Tue, 30th of May)
Shipping Offer

Introduction

The Voltage Divider can detect the supply voltage upto 25V. The DFRobot Voltage Divider module is based on resistor divider principle. The voltage detection module allows the input voltage to reduce 5 times. As the Arduino analog input voltage is up to 5V, so voltage detection module's input voltage can not be greater than the 5Vx5 = 25V.

Specification

  • Type: Analog
  • Input voltage (DC): Maximum 25V, Minimum 0.0245V
  • Detects the supply voltage upto 25V
  • 3 Pins JST interface module

Document

Shipping List

  • Sensor (1 unit)
  • Analog Sensor Cable (1 unit) (SKU:FIT0031)

This product is listed in:

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Peter - It seems to do the job well verified purchaser
    Rating
    80

    It seems to do the job well, although when connected to Analogue input A0 on the arduino, the voltage the arduino read was fluctuating as much as .8 V on the 25V scale, but I think this was more an arduino problem as the voltage at the voltage divider were pretty steady (Posted on 2/09/2014)
