4-Channel Level Converter (12V to 3.3V)

Rating:

100% of 100

SKU: DFR0913 Brand: DFRobot

This 12V to 3.3V level converter module with 4-channel photoelectric isolation features common anode / common cathode / differential signal inputs. The...

$15.35 AUD, inc GST

$13.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 13th of May

Quantity Discounts:

10+ $13.40 (exc GST)
25+ $12.98 (exc GST)

Are you still distressed that industrial sensors can't be used on the Arduino? You may need to get a converter just like this!

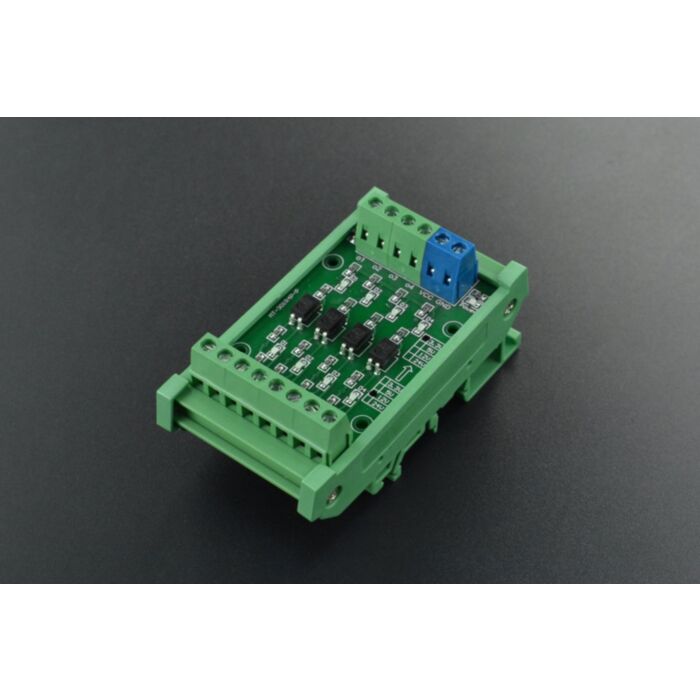

This 12V to 3.3V level converter module with 4-channel Optocoupler isolation features common anode / common cathode / differential signal inputs. The level shifter translates signal level from 12V to 3.3V and offers PNP output (NPN to PNP available). It can be used for signal isolation, PLC signal level conversion, NPN to PNP signal conversion, polarity conversion, signal level voltage conversion and so on.

Wiring Diagram of Common Anode Signal Input

Note: DC power supply positive is equal to signal output voltage. For example: 12V to 3.3V module, then VCC=3.3V.

Features

PNP Output (NPN to PNP available)
Output Signal Level (12V to 3.3V)
Signal Photoelectric Isolation

Applications

Signal isolation
PLC signal level conversion
NPN to PNP signal conversion
Polarity conversion
Signal level voltage conversion

Specification

Input Channel: 4-channel Optocoupler Isolation
Output Signal: PNP Output (NPN to PNP available)
Sensor Input Voltage: 12V
Module Supply Voltage: 3.3V
Input Signal Level: 12V
Output Signal Level: 3.3V
Output Current: no more than 50mA for each channel
Indicator: SMD LED
Size of Bare Board: 45*72*19mm/ 1.77*2.83*0.75 inches
Size of Converter with Shell: 47*87*39mm/ 1.85*3.43*1.54 inches
Size of Screw Hole: 3mm/ 0.12”
Installation Specification With Shell (Fit on standard rails)

Documents

Product Wiki

Parts List

4-Channel Level Converter (12V to 3.3V) x1
