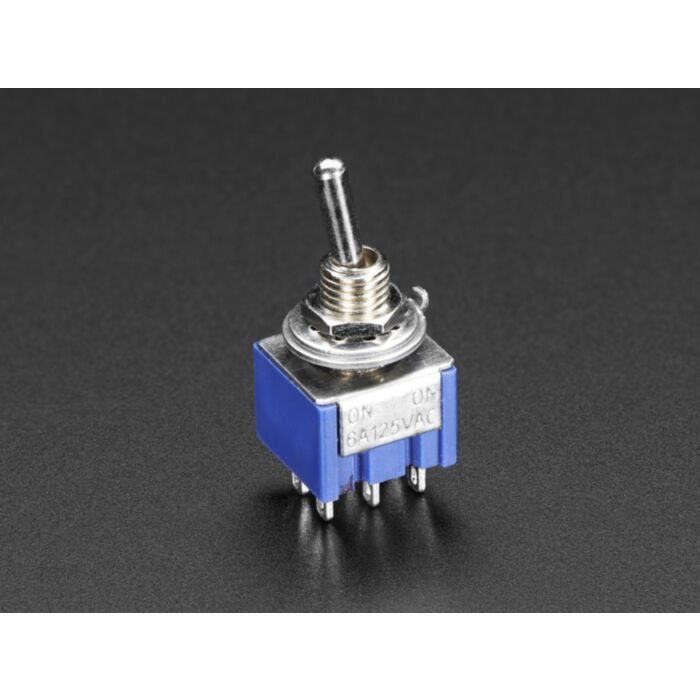

Mini Panel Mount DPDT Toggle Switch

Rating:

100% of 100

SKU: ADA3220 Brand: Adafruit

This or that, one or the other, perhaps or perhaps not! So hard to make decisions these days without feeling like you're just going back and forth constantly. Deciding...

$2.90 AUD, inc GST

$2.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $2.53 (exc GST)
25+ $2.45 (exc GST)

This or that, one or the other, perhaps or perhaps not! So hard to make decisions these days without feeling like you're just going back and forth constantly. Deciding whether or not to use this mini toggle switch? That's the easiest decision you'll make all day!

This Mini Panel Mount DPDT Toggle Switch is great for any project where you need two switches each with two options to select between. Maybe you'll be selecting between two voltages? Two audio outputs? Two sensor inputs? It's up to you! It's short, sweet, blue, and to the point! The part is marked at 6A 125VAC but Adafruit haven't tested it at such high current/voltages and don't recommend it for more than 1A at 24V.

Features!

DPDT 6 Terminal ON-ON 2 - Position Latching Toggle Switch.
Each switch is assembled with two hex nuts, a flat and a locking washer.
Easy installation, fits into any 6mm hole.

They also offer a SPDT version

Technical Details

Product Dimensions: 33.0mm x 13.1mm x 12.6mm / 1.3" x 0.5" x 0.5"

Product Weight: 5.9g / 0.2oz

Diagram

This product is listed in:

Components & Parts>Switches>Toggle Switches
