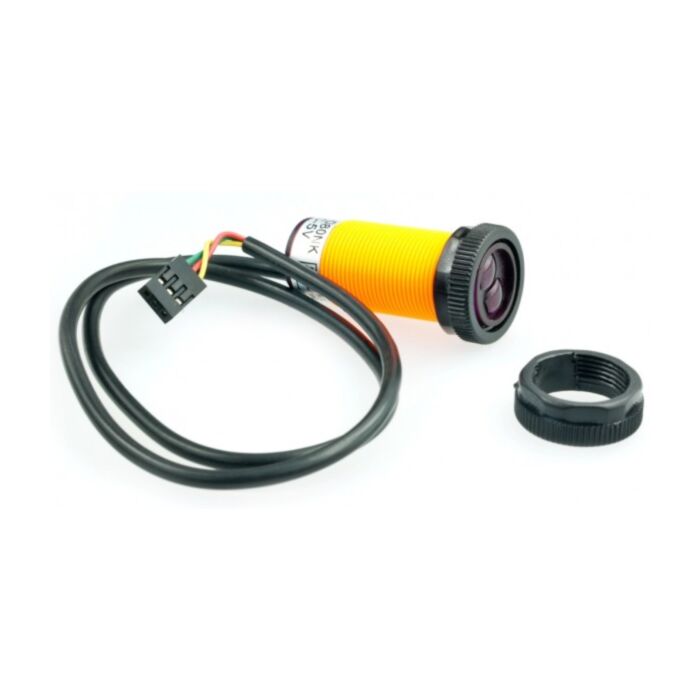

Gravity: Digital Adjustable Infrared Proximity Sensor

SKU: SEN0019 Brand: DFRobot

This is an infrared distance switch. It has an adjustable detection range, 3cm - 80cm. It is small, easy to use/assemble, and inexpensive. Useful for robotics, interactive media, industrial assembly line, etc.

$11.55 AUD, inc GST

$10.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $10.08 (exc GST)
25+ $9.76 (exc GST)

This is an Arduino infrared distance sensor. It has an adjustable detection range, 3cm - 80cm. It is small, easy to use, assemble, and inexpensive.

Useful for robotics, interactive media, industrial assembly line,etc. Infrared wave length is part of the Sun's natural light spectrum. While is a nice fit for indoor projects, outdoors with plenty of sun light and reflective surfaces on it's sight is not adviced. It's incredibly repurposable and canbe used for a lot of different projects. The adjustable screw on it's back makes it very convenient for different purposes. After digital read shows on your Arduino pin andthen you are ready to go. It is a great sensor choice for quick prototyping.

Use it on a robot for wall detection and wall follower, or as some of the projects listed below as atrigger system. It's round shape with the screwable holders make it a good choice for a home made assembled robot, with a hole of it's diameter and the holders you can place it aiming at different positions on a robot. Or even place it nearyour PC to turn on and off your monitor.

To ease the difficulty, a Gravity Interface is adapted to allow plug&play. The IO expansionshield is the best match for this sound senor connecting to your Arduino.

Specification

Power supply: 5V
Current: 100mA
Range: 3 - 80cm adjustable
Brown: +5V; Black: Signal; Blue: GND
Dimension: 45 x 18 x 18 mm (1.8 x 0.7 x0.7 in)
