Gravity: MCP23017 IIC 16 Digital IO Expansion Module

Rating:

100% of 100

SKU: DFR0626 Brand: DFRobot

This is an IO expansion module that based on the chip MCP23017. The module can expand additional 16 IOs. It can set 8 IIC addresses, which means with this module...

$10.10 AUD, inc GST

$9.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10-25 $8.91 (exc GST)
25+ $8.72 (exc GST)

Introduction

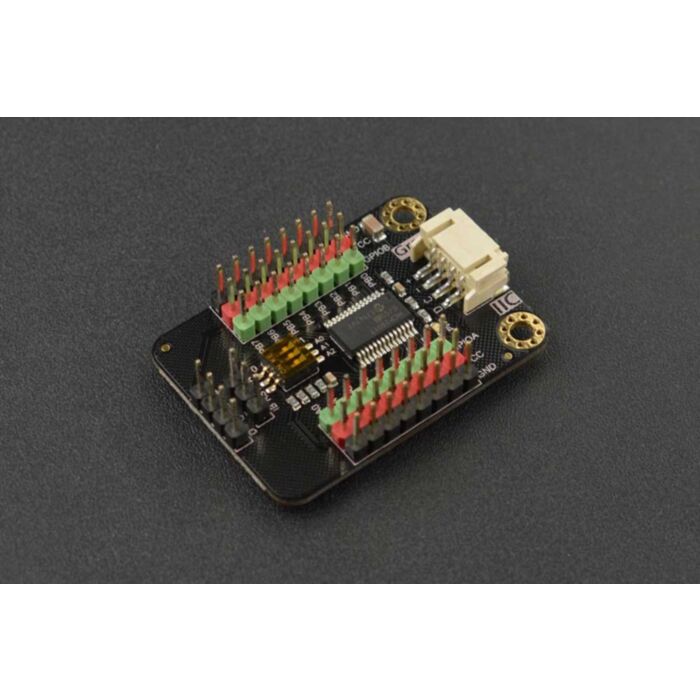

This is an IO expansion module that based on the chip MCP23017. The module can expand additional 16 IOs. It can set 8 IIC addresses, which means with this module, the microcontroller can connect 8 modules, and expand 128 IOs at most. The module solves insufficient IO ports problem in applications like robots and interactive medias.

This Gravity: MCP23017 IIC IO 16 digital IO expansion module has 2 groups of IO pins, GPIOA and GPIOB. Each group has 8 independent IO interfaces, and each IO interface can be set to input, output, pull-up input (connect to 100KO pull-up resistor), interrupt and so on.

Besides, the module has 2 interrupt signal pins: IA and IB. IA is used to detect the interruption in IO interfaces of GPIOA, and IB is used to detect the interruption in IO interfaces of GPIOB. When one pin of GPIOA or GPIOB interrupts, the corresponding IA or IB will produce a high-level signal.

Features

Supporting to expand 128 IOs at most
Multiple IO mode
Changeable IIC address by dial switch
Multiple VCC and GND pins leaded
Compatible with both 3.3V and 5V

Scenarios

Robots
Interactive medias
Light cube

Specification

Operating Voltage: 3.3V~5.5V
IIC Address: 0x20~0x27
Digital Input/Output: 20Ma
Signal Interrupt Pin: IA, IB
Dimension: 44x32mm / 1.73x1.26inch

Documents

Product wiki

Shipping List

Gravity: MCP23017 IIC 16 Digital IO Expansion Module x1
Gravity-4P I2C/UART Wire x1
