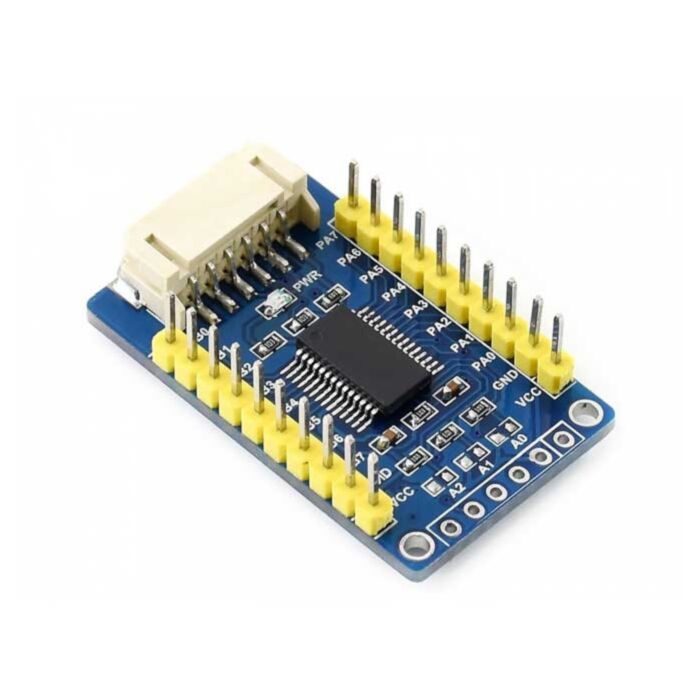

MCP23017 IO Expansion Board, Expands 16 I/O Pins

Rating:

100% of 100

SKU: CE07882 Brand: Waveshare

The MCP23017 IO Expansion Board expands 2 signal pins as 16 I/O pins based on the I2C bus, up to 8 MCP23017 IO Expansion Board can be used at the same time, providing up to 128 I/O pins, it is compatible with both 3.3V and 5V levels.

$11.70 AUD, inc GST

$10.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 18th of Jul

Quantity Discounts:

10-25 $10.32 (exc GST)
25+ $10.10 (exc GST)

Details

MCP23017 IO Expansion Board, I2C Interface, Expands 16 I/O Pins

Overview

The MCP23017 IO Expansion Board expands 2 signal pins as 16 I/O pins based on the I2C bus, up to 8 MCP23017 IO Expansion Board can be used at the same time, providing up to 128 I/O pins, it is compatible with both 3.3V and 5V levels.

Features

I2C controlled, expands 2 signal pins as 16 I/O pins
I2C address configurable by shorting the A0/A1/A2 jumpers
Provides two connector options: PH2.0 terminal and/or solder pads, allows multi I2C modules to be stacked
Onboard voltage translator, compatible with 3.3V/5V level
Comes with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)

Specifications

Operating voltage: 5V/3.3V
Interface: I2C
Interrupt pins: INTA, INTB
Expansion I/Os: 16
Dimension: 38mm × 23mm
Mounting hole size: 2.0mm

Interface Definition

PIN	I2C
VCC	Power supply, 3.3V/5V
GND	Ground
SDA	I2C data line
SCL	I2C clock line
INTA	PA group interrupt output
INTB	PB group interrupt output

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/MCP23017_IO_Expansion_Board

Weight: 0.011 kg

Quick Overview

MCP23017 IO Expansion Board x1
PH2.0 20cm 6Pin x1

This product is listed in:

Breakouts & Modules>Expanders
