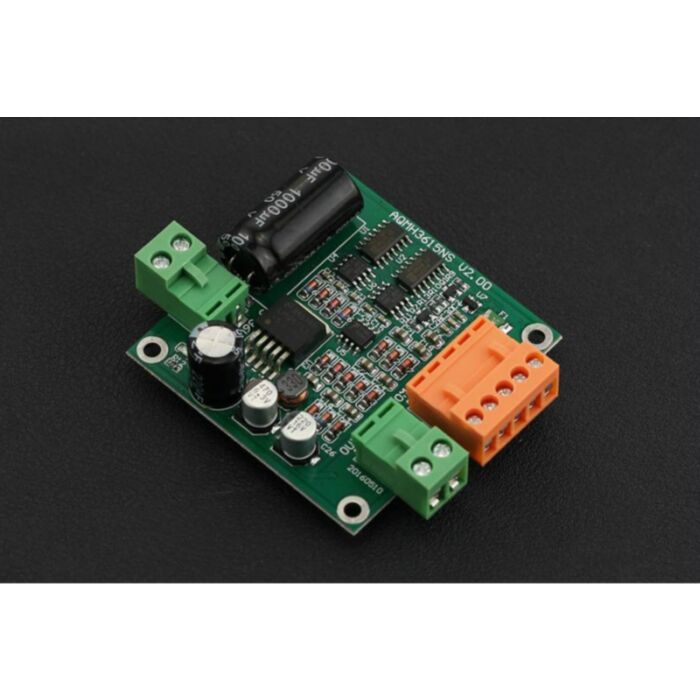

15A Single DC Motor Driver

Rating:
100% of 100
SKU: DRI0042 Brand: DFRobot
This is an ultra small size DC motor driver for room limited projects, while the impressive IC - LM2575 could provide a powerful way to drive 36V@15A motors. Also its UVLO (Under Voltage Latch-Out) feature provides a safe guard for your system. Besides all, it is very considerate to own an 5V output for Arduino or any other devices, and its interface is ESD (electro-static discharge) protection.
$33.55 AUD, inc GST
$30.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 31st of May

Quantity Discounts:

  • 10-25 $29.58 (exc GST)
  • 25+ $28.97 (exc GST)
- +

8 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.


This is an ultra small size DC motor driver for room limited projects, while the impressive IC - LM2575 could provide a powerful way to drive 36V@15A motors. Also its UVLO (Under Voltage Latch-Out) feature provides a safe guard for your system. Besides all, it is very considerate to own an 5V output for Arduino or any other devices, and its interface is ESD (electro-static discharge) protection.


Specification

  • Voltage supply: DC 12 ~ 36 V
  • Voltage supply limit: 6.5 ~ 40 V
  • Control signal Level (Compatible 3.3V/5V)
    • High: DC 2.0 ~ 5.5 V
    • Low: DC0 ~ 0.8 V
  • Maximum continuous operating current:
    • 12A (no heat sink)
    • 15A (with simple heat sink)
    • 20A (with Thick Heat Sink/ Cooling System)
  • Peak current: 110 A
  • Speed control: PWM
  • Minimum valid Pulse Width: 200 ns
  • Maximum Output Current @5V: 500 mA
  • Working Temperature: -25 ~ 85 °C
  • Mounting Hole: M3
  • Dimension (Length * Width * Height): 55 * 55 * 20 (mm)/ 2.165 * 2.165 * 0.787 (in)
  • Weight: 42g

Documents

Parts List

  • 15A Single DC Motor Driver x1
