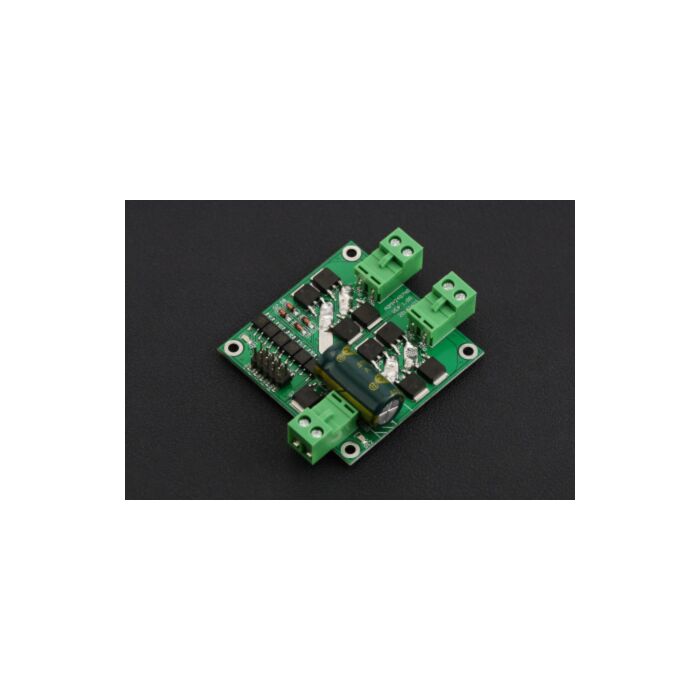

2x7A DC Motor Driver

Rating:

100% of 100

SKU: DRI0041 Brand: DFRobot

This is an ultra small Dual DC motor driver for some room limited projects. UVLO (Under Voltage Latch-Out) features a safe guard for your system. It is very considerate to own an Photo Coupler isolation for all the signals in case of that the motor's Reverse Current would interfere the control signals. Besides all, all the interfaces includes ESD (electro-static discharge) protection.

$35.10 AUD, inc GST

$31.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $30.64 (exc GST)
25+ $29.67 (exc GST)

Introduction

Specification

Voltage supply: DC 7 ~ 24 V
Voltage supply limit: 6.5 ~ 27 V
Control signal Level (Compatible 3.3V/5V)

High: DC 3.0 ~ 6.5 V

Low: DC0 ~ 0.8 V

Output Channel: 2
Control signal current: 3 ~ 11 mA (Each route)
Maximum continuous operating current: 7 A
Peak current: 50 A
Speed control: PWM

Minimum valid Pulse Width: 5 us

Working Temperature: -25 ~ 85 °C
Mounting Hole: M3
Dimension (Length * Width * Height): 55 x 55(mm)/2.165 x 2.165(in)
Weight: 32g

Documents

Product WIKI

Parts List

7A Dual DC Motor Driver x1

This product is listed in:

Breakouts & Modules>Motor Drivers & Controllers>Brushed DC Motor Drivers
