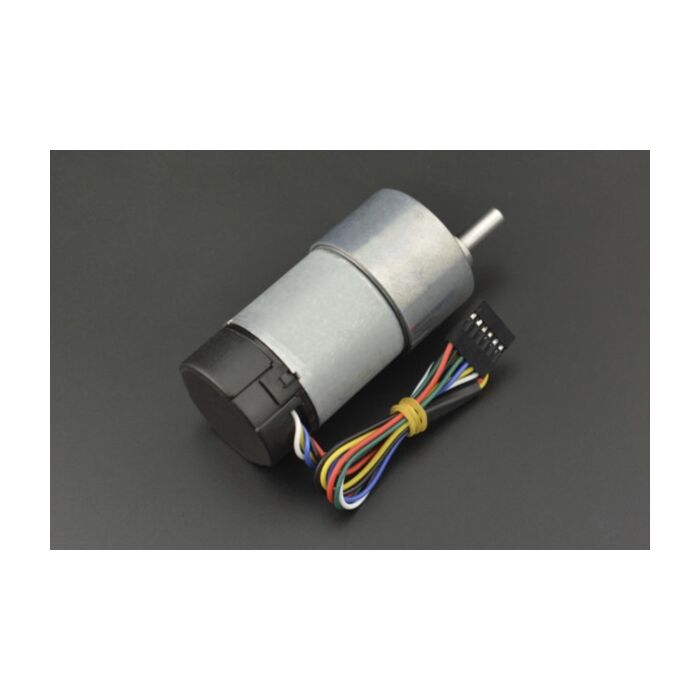

Metal DC Geared Motor w/Encoder - 12V 251RPM 18Kg.cm

SKU: FIT0186 Brand: DFRobot
This is a Gear Motor w/Encoder, model No.GB37Y3530-12V-251R. It is a powerful 12V motor with a 43.8:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 16 counts per revolution of the motor shaft, which corresponds to 700 counts per revolution of the gearbox’s output shaft.
$30.65 AUD, inc GST
$27.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $27.03 (exc GST)
  • 25+ $26.47 (exc GST)
- +

17 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a Gear Motor w/Encoder, model No.GB37Y3530-12V-251R. It is a powerful 12V motor with a 43.8:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 16 counts per revolution of the motor shaft, which corresponds to 700 counts per revolution of the gearbox’s output shaft.

These units have a 0.61" long, 6 mm(0.24")-diameter D- shaped output shaft. This motor is intended for use at 12V, though the motor can begin rotating at voltages as low as 1V.

The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws. These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5 mm(0.61") apart.

This motor is an ideal option for your mobile robot project.

Warning: Do not screw too far into the mounting holes as the screws can hit the gears. Manufacturer recommends screwing no further than 3mm (1/8") into the screw hole.

Specification

  • Gear ratio: 43.8:1
  • No-load speed: 251 + 10% RPM
  • No-load current: 350 mA
  • Start Voltage: 1.0 V
  • Stall Torque: 18 Kg.cm
  • Stall Current: 7 A
  • Insulation resistance: 20 M Ω
  • EncoderOperating Voltage: 5 V
  • Encoder type: Hall
  • Encoder Resolution: 16CPR(motor shaft)/700CPR(gearbox shaft)
  • Weight: 205g
