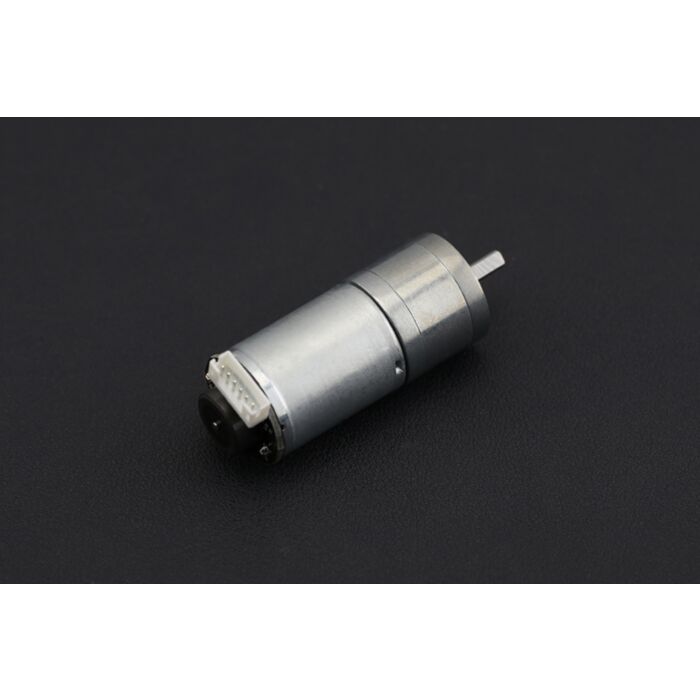

12V DC Motor 350RPM w/Encoder (12kg*cm)

SKU: FIT0493

$50.33 AUD, inc GST
$45.75 AUD, exc GST

More Views

12V DC Motor 350RPM w/Encoder (12kg*cm)
50.33 AUD

SKU: FIT0493

$50.33 AUD, inc GST
$45.75 AUD, exc GST
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

This is a gear motor with encoder. It is a motor with a 34:1 gearbox and an integrated quadrature encoder that provides a resolution of 11 pulse single per round giving a maximum output of 374 within one round. With an Arduino controller and motor driver, applications for this include a closed-loop PID control or PWM motor speed control. This motor is an ideal option for mobile robot projects. The copper output shaft, embedded thread and reinforced connector greatly extends the motor's service life.

Specification

  • Rated Voltage:            12V
  • Gear Reduction Ratio:         34:1
  • No-Load Speed:             350 [email protected]
  • No-Load Current:         20 mA
  • Maximum efficiency point parameters: 2.0kg.cm/285rpm/5.0W/0.65A
  • Maximum power point parameters: 5.8kg.cm/180rpm/9.0W/1.65A
  • Stall current:            5.5A
  • Stall torque:            12kg.cm
  • Hall Feedback Resolution:    374
  • Weight:             98g

Documents



Parts List

  • 12V DC Motor 350RPM w/Encoder (12kg*cm)  x1
  • 6P*15cm connection cable         x1
