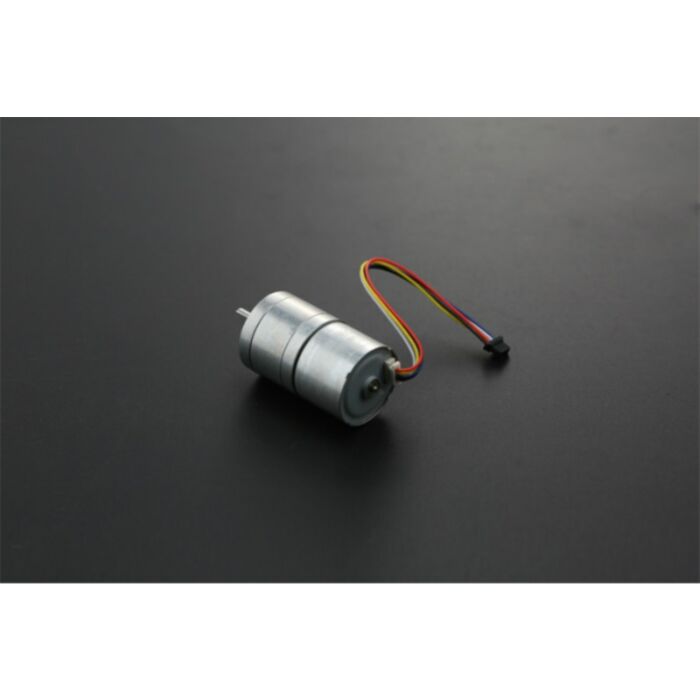

Brushless DC Motor with Encoder 12V 159RPM

SKU: FIT0441 Brand: DFRobot
This is a motor revolution: a new DC brushless motor with built-in motor driver. It can be conncected to Arduino directly without external motor driver. Whatsmore, the motor comes with directional control, PWM speed control and speed feedback output, which make this motor to be controlled easily. This product is convenient for mobile robotic platform since there is less drive pin and less MCU resource consumption.
$32.45 AUD, inc GST
$29.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 13th of Nov

Quantity Discounts:

  • 10-25 $28.32 (exc GST)
  • 25+ $27.44 (exc GST)
- +

10 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a motor revolution: a new DC brushless motor with built-in motor driver. It can be conncected to Arduino directly without external motor driver. Whatsmore, the motor comes with directional control, PWM speed control and speed feedback output, which make this motor to be controlled easily. This product is convenient for mobile robotic platform since there is less drive pin and less MCU resource consumption.

Specification

  • Operating Voltage: 12V
  • Motor rated speed: 7100-7300rpm
  • Blocking torque:2.4kg*cm
  • Speed: about 159 rpm/min.
  • Reduction ratio: 45:1
  • Signal cycle pulse number: 6*45
  • Control mode:
    • PWM speed control
    • Direction control
    • Feedback pulse output

Documents

Parts List

  • Brushless DC Motor with Encoder x1

Dimensions

This product is listed in:

Components & Parts>Motors>DC Motors
