Adafruit RGB Matrix HAT + RTC for Raspberry Pi - Mini Kit

SKU: ADA2345

$41.95 AUD, inc GST
$38.14 AUD, exc GST

More Views

Adafruit RGB Matrix HAT + RTC for Raspberry Pi - Mini Kit
41.95 AUD

SKU: ADA2345

$41.95 AUD, inc GST
$38.14 AUD, exc GST
In stock, ships today if ordered before 2PM
Delivered by Wed, 25th of Oct

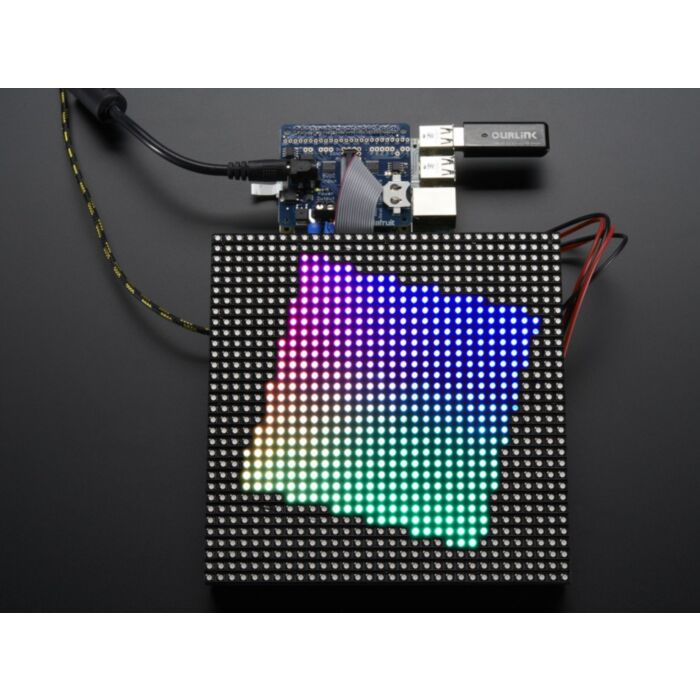

You can now create a dazzling display with your Raspberry Pi Model A+/B+/Pi 2 or Pi 3 with the Adafruit RGB Matrix HAT. This HAT plugs into your Pi and makes it super easy to control RGB matrices such as those Adafruit stock in the shop and create a colorful scrolling display or mini LED wall with ease.

This HAT is Adafruit's finest to date, full of some really great circuitry. Let me break it down for you:

  • Simple design - plug in power, plug in IDC cable, run Adafruit's Python code!
  • Power protection circuitry - you can plug a 5V 4A wall adapter into the HAT and it will automatically protect against negative, over or under-voltages! Yay for no accidental destruction of your setup.
  • Onboard level shifters to convert the RasPi's 3.3V to 5.0V logic for clean and glitch free matrix driving
  • DS1307 Real Time Clock can keep track of time for the Pi even when it is rebooted or powered down, to make for really nice time displays

Works with any of our 16x32, 32x32 or 32x64 RGB LED Matrices with HUB75 connections. You can even chain multiple matrices together for a longer display, you can chain as many as you like but the bigger the display the harder it is on the Pi so keep that in mind! Adafruit don't recommend more than 32x128 pixel setups

Please note: this HAT is only for use with HUB75 type RGB Matrices. Not for use with NeoPixel, DotStar, or other 'addressable' LEDs.

Each order comes with a HAT PCB with all surface mount parts assembled, a 2x20 female socket connector, a 2 pin terminal block, and a 2x8 IDC socket connector. A CR1220 coin cell is not included to make air shipping easier, please order one seperately if you do not have one and would like to use the real time clock.

RGB Matrix is not included, please check out Adafruit's fine selection!

A 5V power supply is also required, not included, for powering the matrix itself. The Pi cannot do it due to the high currents. To calculate the max current of your matrix set up, multiply the width of all the chained matrix by 0.12 : A 32 pixel wide matrix needs 32*0.12 = 3.85A so pick up a 5V 4A power supply.

Raspberry Pi not included (but Adafruit have 'em in the shop so pick one up, tested with model A+, B+, Pi 2 or Pi 3 only!)

Some light soldering is required to attach the headers to your Pi. A soldering iron and solder are required, but it's not a complex soldering job and most beginners can do it in about 15 minutes.

Check out Adafruit's full tutorial with schematics, wiring diagrams, instructions and a Python library so you can get drawing fast!
