Adafruit PyBadge LC - MakeCode Arcade, CircuitPython or Arduino - Low Cost Version

Rating:
100% of 100
SKU: ADA3939 Brand: Adafruit
What's the size of a credit card and can run CircuitPython, MakeCode Arcade or Arduino even when you're on a budget? That's right, it's the Adafruit PyBadge LC!...
$60.15 AUD, inc GST
$54.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 2nd of Apr

Quantity Discounts:

  • 6-12 $52.49 (exc GST)
  • 12+ $50.85 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

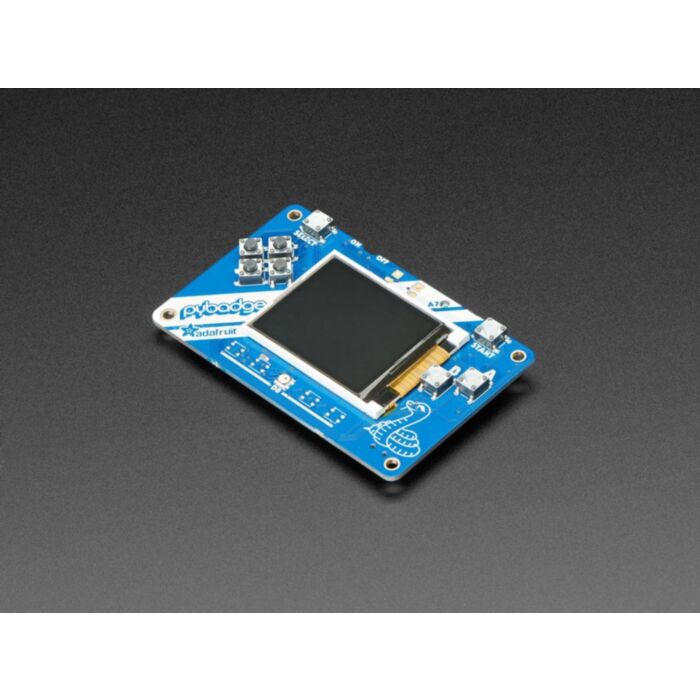

What's the size of a credit card and can run CircuitPython, MakeCode Arcade or Arduino even when you're on a budget? That's right, it's the Adafruit PyBadge LC! We wanted to see how much Adafruit could cram into a 3 ⅜ × 2 ⅛ inch rounded rectangle, to make an all-in-one dev board with a lot of possibilities, and this is what Adafruit came up with.

The PyBadge is a compact board, like Adafruit said, it's credit card sized. It's powered by Adafruit's favorite chip, the ATSAMD51, with 512KB of flash and 192KB of RAM. Adafruit add 2 MB of QSPI flash for file storage, handy for images, fonts, sounds, or game assets.

This is the Low Cost version of Adafruit's more fully featured Adafruit PyBadge. Adafruit pared down the hardware to make it even more affordable, and you can still use it with MakeCode Arcade, CircuitPython or Arduino! The LC version has the same processor chip, QSPI Flash, on/off switch, buttons, buzzer, light sensor and battery circuit. It does not have Feather headers, JST STEMMA connectors, LIS3DH accelerometer, or optional speaker connection. Instead of 5 NeoPixels there is only one in the center front.

On the front you get a 1.8" 160x128 color TFT display with dimmable backlight - Adafruit have fast DMA support for drawing so updates are incredibly fast. There's also 8 silicone-top buttons, they are clicky but have a soft button top so they're nice and grippy. The buttons are arranged to mimic a gaming handheld, with a d-pad, 2 menu-select buttons and 2 fire-action buttons. There's also a NeoPixel LED in the front to dazzle or track activity.

For built in sensoring, there's a light sensor that points out the front. To make bleeps and bloops, there's a built in buzzer-speaker.

You can power the PyBadge from any of Adafruit's LiPoly batteriesbut Adafruit like this 400mAh one. An on-off switch will save battery power when not in use. Or power from the Micro USB port - it will also charge up the battery if one is attached.

Now, how to program it? Well you've got a lot of options!

Here's a list of everything you get

  • ATSAMD51J19 @ 120MHz with 3.3V logic/power - 512KB of FLASH + 192KB of RAM
  • 2 MB of SPI Flash for storing images, sounds, animations, whatever!
  • 1.8" 160x128 Color TFT Display connected to its own SPI port
  • 8 x Game/Control Buttons with nice silicone button tops (these feel great)
  • 1 x NeoPixel for badge dazzle
  • Light sensor, reverse-mount so that it points out the front
  • Built in buzzer mini-speaker
  • LiPoly battery port with built in recharging capability
  • USB port for battery charging, programming and debugging
  • Reset button
  • On-Off switch

Technical Details

Product Dimensions: 85.7mm x 54.6mm x 10.0mm / 3.4" x 2.1" x 0.4"

Product Weight: 25.7g / 0.9oz
