Adafruit Audio FX Sound Board + 2x2W Amp - WAV/OGG Trigger - 2MB

Rating:

80% of 100

SKU: ADA2210 Brand: Adafruit

Would you like to add audio/sound effects to your next project, without an Arduino+Shield? Or maybe you don't even know how to use microcontrollers. Adafruit's Audio FX Sound Board is the fastest way to add audio effects to a project! We think this is the best sound board for props and costumes!

$47.60 AUD, inc GST

$43.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

10-25 $41.55 (exc GST)
25+ $40.25 (exc GST)

Recommended Essentials:

Speaker - 40mm Diameter - 4 Ohm 5 Watt

$11.55

MicroUSB Battery Holder (3xAA)

$2.65

Would you like to add audio/sound effects to your next project, without an Arduino+Shield? Or maybe you don't even know how to use microcontrollers, you just want to make a sound play whenever you press a button. What about something that has to be small and portable? You are probably feeling a little frustrated: it's been very hard to find a simple, low cost audio effects trigger that is easy to use and does not require any programming

UNTIL NOW!

Don't get me wrong, I love the MP3 Music Maker shield, and Adafruit's Wave Shield is a dependable classic. But you still need to get an Arduino involved. There's all sorts of tricks with ISD chips or recordable greeting cards, but they never sound any good. So after a lot of engineering and tinkering Adafruit have come out with the Adafruit Sound Board, the fastest way to add audio effects to a project! we think this is the best sound board for props and costumes!

Best of all, this version even comes with a 2 x 2W stereo class D amplifier! If you don't need an amplifier built in, check out the headphone-out version here.

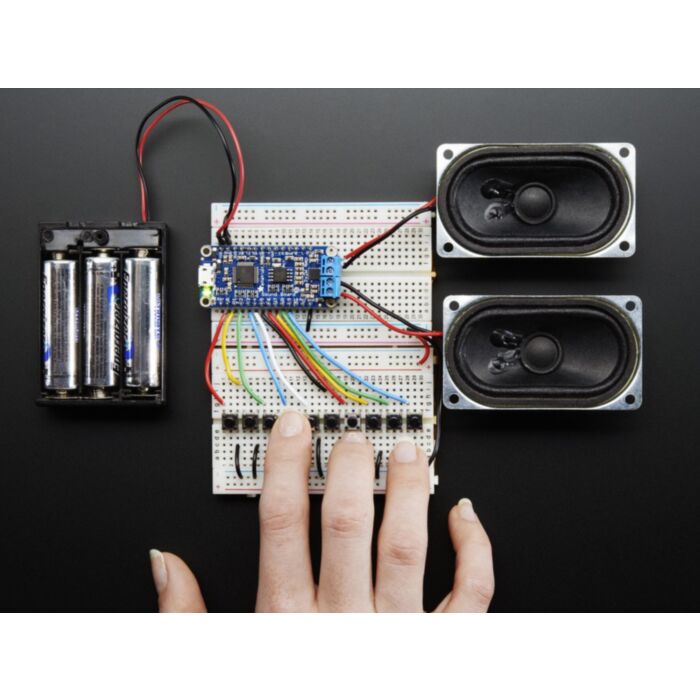

This product includes the Audio FX sound board, header strip, and two 2-pin terminal blocks. It does not include batteries, speakers, breadboard, or tactile switches.

The Sound Board has a lot of amazing features that make it the easiest thing ever:

No Arduino or other microcontroller required! It is completely stand-alone, just needs a 3 to 5.5VDC battery
Small - only 1.9" x 0.85"
Built in storage - yep! you don't even need an SD card, there's 2MB of storage on the board itself. Good for a few minutes of compressed stereo, and maybe half a minute of uncompressed stereo. Double that if you go with mono instead of stereo. If you need more storage, check out the 16MB version.
Built in Mass Storage USB - Plug any micro USB cable into the Sound Board and your Windows computer, you can drag and drop your files right on as if it were a USB key
Compressed or Uncompressed audio - Go with compressed Ogg Vorbis files for longer audio files, or uncompressed WAV files
High Quality Sound - You want 44.1KHz 16 bit stereo? Not a problem! The decoding hardware can handle any bit/sample rate and mono or stereo
11 Triggers - Connect up to 11 buttons or switches, each one can trigger audio files to play
Stereo line out - Adafruit breakout the line out levels so you can connect up headphones if desired
2 x 2W Class D Amplifier - Get booming instantly, Adafruit baked in a stereo amplifier that can drive 4-8 ohm speakers, up to 2.2W with only 1% distortion
Five different trigger effects - by changing the name of the files, you can create five different types of triggers which will cover a large range of projects without any programming

What do Adafruit mean by trigger effects? Well, depending on your project you may need to have audio play in different ways. Adafruit thought of the five most common needs and built it into the Sound Board so you just rename the file to get the effect you want. See the product tutorial for more details

Basic Trigger - name the file Tnn.WAV or Tnn.OGG to have the audio file play when the matching trigger pin nn is connected to ground momentarily
Hold Looping Trigger - name the file TnnHOLDL.WAV or .OGG to have the audio play only when the trigger pin is held low, it will loop until the pin is released
Latching Loop Trigger - name the file TnnLATCH.WAV or .OGG to have the audio start playing when the button is pressed momentarily, and repeats until the button is pressed again
Play Next Trigger - have up to 10 files play one after the other by naming them TnnNEXT0.WAV thru TnnNEXT9.OGG. Will start with #0 and each one on every momentary button press until it gets through all of them, then go back to #0
Play Random Trigger - just like the Play Next trigger, but will play up to 10 files in random order (TnnRAND0.OGG thru TnnRAND9.OGG) every time the button is pressed momentarily

The sound board is designed to be simple: it does not have polyphonic ability, can't play MP3's (MP3 is patented and costs $ to license, so this board uses the similar but not-patented OGG format, there's tons of free converters that will turn an MP3 into OGG), isn't reprogrammable or scriptable, and you can't have any other kind of trigger type. However, there's a good chance the project you want to make will work great.

Adafruit designed this board specifically for people who wanted to make props, costumes, toys, and other small portable projects. Check out the tutorial for all the powering options, you can power from 3-5VDC so a 3xAAA battery pack or a LiPoly battery will work well. You can even use Adafruit's LiPoly backpack to fit on top for an all-in-one rechargeable effects board

Technical Details

Dimensions: 23mm x 51mm x 3mm / 0.9" x 2" x 0.1"
Weight: 4.9g
Voltage Input Range: 3-5VDC
Datasheets, PCB files, and Fritzing object available from tutorial downloads page
