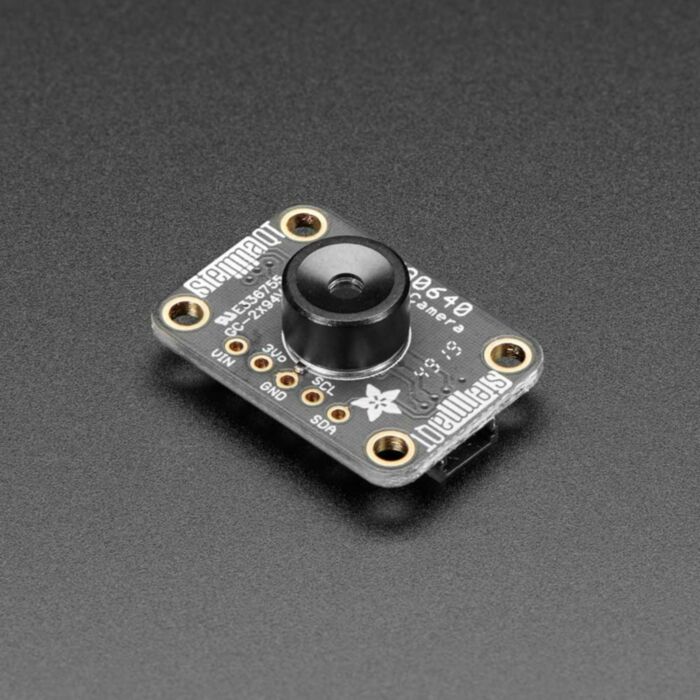

Adafruit MLX90640 24x32 IR Thermal Camera Breakout - 110 Degree FoV

Rating:
100% of 100
SKU: ADA4469 Brand: Adafruit
You can now add affordable heat-vision to your project and with an Adafruit MLX90640 Thermal Camera Breakout. This sensor contains a 24x32 array of IR thermal sensors...
$159.95 AUD, inc GST
$145.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 5-10 $139.59 (exc GST)
  • 10+ $135.23 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

You can now add affordable heat-vision to your project and with an Adafruit MLX90640 Thermal Camera Breakout. This sensor contains a 24x32 array of IR thermal sensors. When connected to your microcontroller (or Raspberry Pi) it will return an array of 768 individual infrared temperature readings over I2C. It's like those fancy thermal cameras, but compact and simple enough for easy integration.

This part will measure temperatures ranging from -40°C to 300°C with an accuracy of +- 2°C (in the 0-100°C range). With a maximum frame rate of 16 Hz (the theoretical limit is 32Hz but Adafruit were not able to practically achieve it), It's perfect for creating your own human detector or mini thermal camera. Adafruit have code for using this sensor on an Arduino or compatible (the sensor communicates over I2C) or on a Raspberry Pi with Python. If using an Arduino-compatible, you'll need a processor with at least 20KB RAM - a SAMD21 (M0) or SAMD51 (M4) chipset will do nicely. On the Pi, you can even perform interpolation processing with help from the SciPy python library and get some pretty nice results!

This sensor reads the data twice per frame, in a checker-board pattern, so it's normal to see a checker-board dither effect when moving the sensor around - the effect isn't noticable when things move slowly.

To make it easy to use, Adafruit hand-soldered it on a breakout board with a 3.3V regulator and level shifting. So you can use it with any 3V or 5V microcontroller or computer. Adafruit have even included SparkFun qwiic compatible STEMMA QT connectors for the I2C bus so you don't even need to solder! Just plug-n-play with any of our STEMMA QT (JST SH) cables.

Even better - Adafruit have done all the hard work here, with example code and supporting software libraries to get you up in running in just a few lines of Arduino or Python code

Technical Details

  • I2C compatible digital interface
  • Programmable refresh rate 0.5Hz…64Hz (0.25 ~ 32 FPS)
  • 3.3V-5V supply voltage, regulated to 3.3V on breakout
  • Current consumption less than 23mA
  • Field of view: 110°x75°
  • Operating temperature -40°C ~ 85°C
  • Target temperature -40°C ~ 300°C

Product Dimensions: 25.8mm x 17.8mm x 10.5mm / 1.0" x 0.7" x 0.4"

Product Weight: 3.0g / 0.1oz
