PiicoDev Prototyping Cable (Female) 200mm

Rating:

100% of 100

SKU: CE07958 Brand: PiicoDev

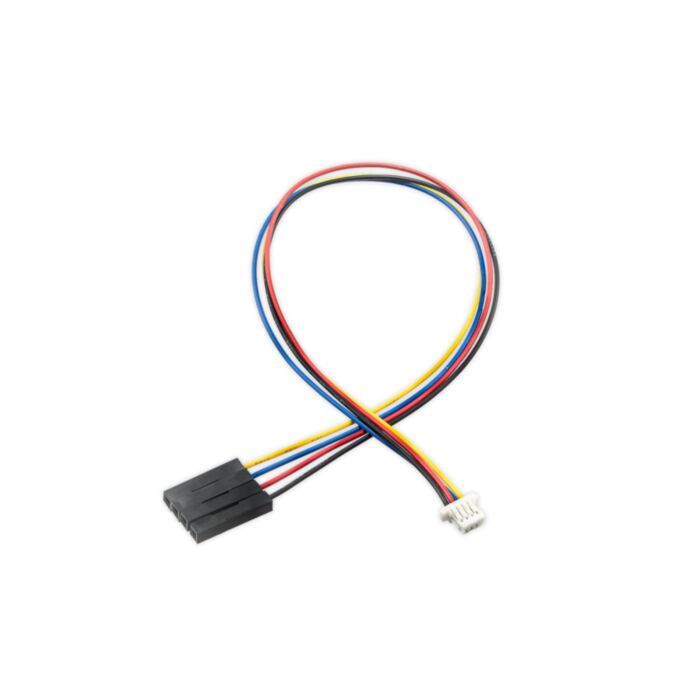

This 200mm cable breaks out the four wires in a PiicoDev cable for manual wiring to breadboards or development boards. It's a 4-wire harness with an SH connector on one end and four Dupont-style connectors on the other.

$3.15 AUD, inc GST

$2.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

10-25 $2.75 (exc GST)
25+ $2.66 (exc GST)

This 200mm cable breaks out the four wires in a PiicoDev cable for manual wiring to breadboards or development boards. It is a 4-wire harness with 1mm pitch SH connectors on one end and four individual Dupont-style connectors on the other.

Features

200mm long
Also compatible with Qwiic and STEMMA QT boards

Colours

Black for GND
Red for V+ (For PiicoDev and Qwiic boards that's 3.3V. For STEMMA QT, 3.3 to 5V).
Blue for SDA
Yellow for SCL

Wiring Example - Raspberry Pi

This cable is often used for connecting directly to boards that have male headers, such as the Raspberry Pi. The following image shows how to use the prototyping cable for a Raspberry Pi.

Also available are PiicoDev Starter Kits - level up your projects by learning how to use a wide range of modern sensors and outputs.

Note: PiicoDev expansion boards and adapters have inbuilt 4.7k pull-up resistors and 120 Ohm series resistors on the SDA and SCL lines, so we recommend adding these in if you're plugging straight into your dev board. For a closer look, check out the schematic for your relevant dev board over on our GitHub

PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
Breakout pins. Every module has a breakout section for optional advanced uses.
Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
