Adafruit Micro Lipo - USB LiIon/LiPoly charger - v1

SKU: ADA1304

$8.69 AUD, inc GST
$7.90 AUD, exc GST

More Views

Adafruit Micro Lipo - USB LiIon/LiPoly charger - v1
8.69 AUD

SKU: ADA1304

$8.69 AUD, inc GST
$7.90 AUD, exc GST
5 reviews 0 5 5

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 116 units dispatch in 4 to 8 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Fri, 1st of Jun with Express Post within Australia.
Shipping Offer
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

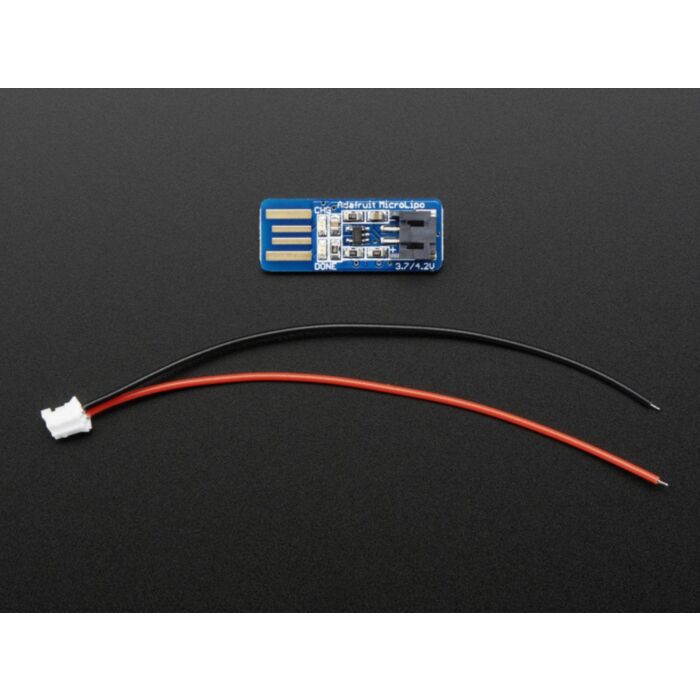

Oh so adorable, this is the tiniest little lipo charger, so handy you can keep it any project box! Its also easy to use. Simply plug in the gold plated contacts into any USB port and a 3.7V/4.2V lithium polymer or lithium ion rechargeable battery into the JST plug on the other end. There are two LEDs - one red and one green. While charging, the red LED is lit. When the battery is fully charged and ready for use, the green LED turns on. Seriously, it could not get more easy.

Charging is performed in three stages: first a preconditioning charge, then a constant-current fast charge and finally a constant-voltage trickle charge to keep the battery topped-up. The charge current is 100mA by default, so it will work with any size battery and USB port. If you want you can easily change it over to 500mA mode by soldering closed the jumper on the back, for when you'll only be charging batteries with 500mAh size or larger.

For use with Adafruit LiPoly/LiIon batteries only! Other batteries may have different voltage, chemistry, polarity or pinout.

  • Comes assembled and tested with a free bonus JST cable!
  • 5V input via PCB-style USB connector
  • For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)
  • 100mA charge current, adjustable to 500mA by soldering a jumper closed
  • Free 2-pin JST cable included!

Batteries not included.

Adafruit Micro Lipo - USB LiIon/LiPoly charger (18:22)

Technical Details

Details:

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Alan verified purchaser
    Rating
    100

    This is a really sweet little unit. I used it to get a quick and dirty prototype up and running and it performed well. (Posted on 31/10/2017)

  2. Review by Chris verified purchaser
    Rating
    100

    This is too cool... plugs straight in to your USB port. (Posted on 7/04/2017)

  3. Review by Rod - good device fast delivery verified purchaser
    Rating
    100

    Great little charger (Posted on 26/12/2015)

  4. Review by Rodney - A great litle neat charger for small LiPo's verified purchaser
    Rating
    100

    A nice little form factor charger that plugs into your USB port. Nice! (Posted on 20/12/2013)

  5. Review by Rodney - Great little battery verified purchaser
    Rating
    100

    A nice sized little battery to run some small LED projects.
    Perfect to run on the Gemma board! (Posted on 20/12/2013)
