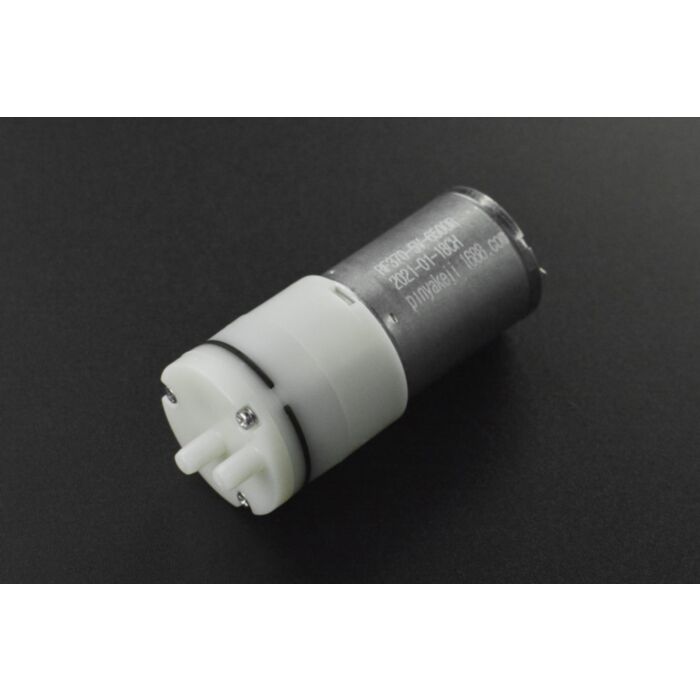

370 Mini Vacuum Pump

Rating:

100% of 100

SKU: FIT0801 Brand: DFRobot

This super-easy-to-use air pump with 2.2 LPM flow rate and -58kpa Maximum Vacuum is very suitable for beginners to make inflatable or pneumatic projects...

$9.40 AUD, inc GST

$8.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $8.29 (exc GST)
25+ $8.12 (exc GST)

This super-easy-to-use air pump is very suitable for beginners to make inflatable or pneumatic projects. It is basically a DC motor, and the power consumption is only 2.5W when powered by 5V. So you can use the same power supply as other DC motors or servo systems to power it.

When powered on, the pump sucks air from the side port and outputs it from the middle port. If you want to inflate and deflate at the same time, then two pumps are required. The pump flow rate is 2.2 LPM (liters per minute), and its maximum suction is -58kpa. This air pump can be used in household appliances, medical equipment, vacuum packaging machines, etc.

Dimensions

Specifications

Operating Voltage Range: 1.5~5V
No-load Current: ≤500mA (5V)
No-load Flow: ≥2.2L/min (5V)
Noise: ＜60dB
Maximum Vacuum: ≥-58Kpa

Parts List

370 Mini Vacuum Pump x1

This product is listed in:

Components & Parts>Others
