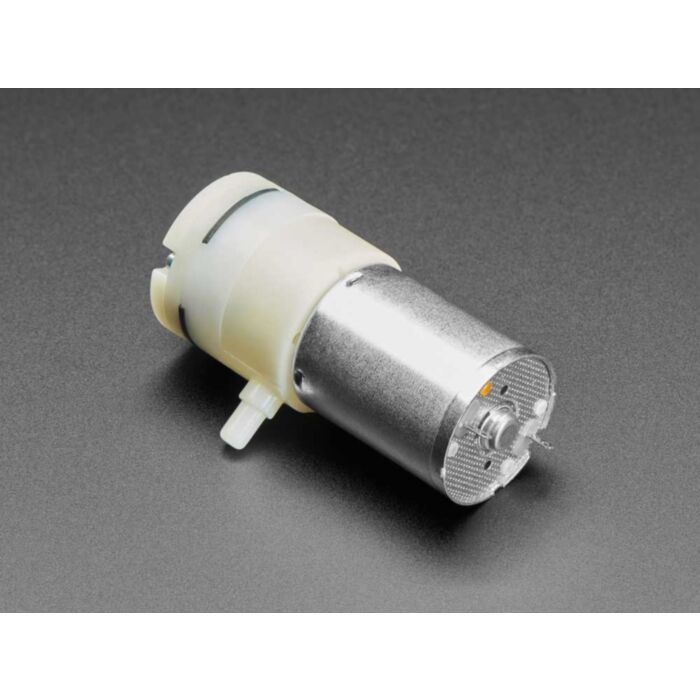

Air Pump and Vacuum DC Motor - 4.5 V and 2.5 LPM - ZR370-02PM

SKU: ADA4699 Brand: Adafruit

Make inflatables or air-powered projects with this simple air pump. It's great for beginner projects and super easy to use! The pump is basically a DC motor, driving an impellor, that is powered with ~4.5V and draws about ~500 mA. 5V should be just fine, so you can power it from the same power supply you use for other DC motors or servos.

$18.85 AUD, inc GST
$17.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 10-25 $16.45 (exc GST)
  • 25+ $15.94 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Make inflatables or air-powered projects with this simple air pump. It's great for beginner projects and super easy to use! The pump is basically a DC motor that is powered with ~4.5V and draws about ~500 mA. 5V should be just fine, so you can power it from the same power supply you use for other DC motors or servos.

When powered, the pump sucks air in from the side of the plastic casing and pushes it out the tubing port. Reversing the motor polarity does not change the direction of air flow! If you need to both inflate and deflate something, you'll need two pumps. The flow rate is 2.5 LPM (liters per minute) and has a 'stall' max pressure of -55 kpa.

This pump isn't rated for continuous use. The specification sheet indicates the design is tested for 30,000 cycles of 10 seconds on, 5 seconds off. Adafruit would recommend a duty cycle of about 50%. Adafruit are stocking this for use by engineers, makers, students and artists who want something simple and inexpensive to create inflatable robots or art projects.

You can PWM the motor to speed up or slow down the flow rate. Works great with either a power transistor (basic on/off) or a motor driver chip such as the L293D, and with any boards from the CRICKIT series. Like all pumps, it vibrates a lot so make sure its resting against a soft foam or sponge so the vibrations don't make a lot of noise.

Please note: This is just the pump. Silicone tube is not included, so why not grab this 1 meter long silicone tubing while you're here?

This pump is for air only! If you need water pumps, check out Adafruit's range of submersible water pumps

If you need a self-priming, food-safe, reversible direction pump, check out Adafruit's range of peristaltic pumps.

Technical Details

  • Tube ports:
    • Side inlet port: 2mm inner diameter / 4.3mm outer diameter (so use tubing with ~3-4mm ID)
    • End outlet port: 1mm inner diameter / 4.3mm outer diameter (so use tubing with ~3-4mm ID)
  • Diagram
  • Specification Sheet
