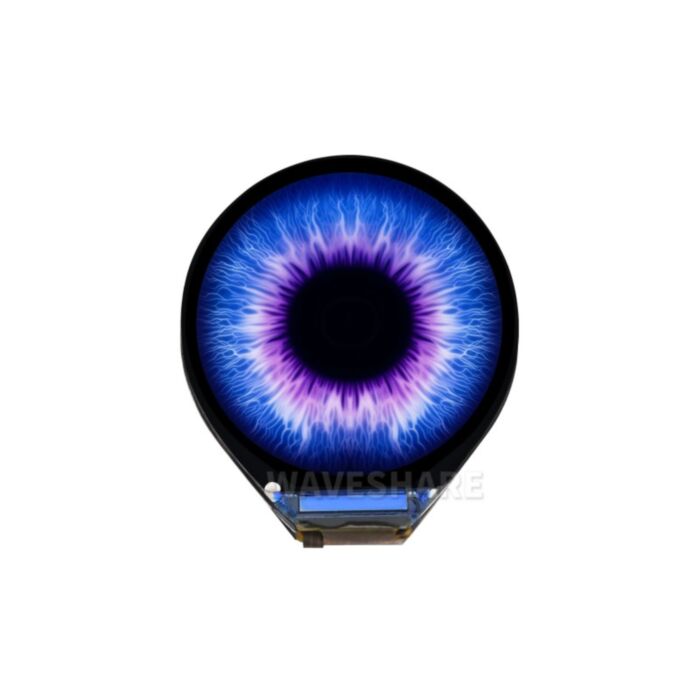

0.71inch Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K colors

SKU: WS-29380 Brand: Waveshare

0.71inch Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K colors...

Special Price $10.74 AUD, inc GST

Regular Price $17.11 AUD, inc GST

$9.76 AUD, exc GST

Special pricing ends 22 July 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 07 and May 12

Compact, vibrant, and easy to integrate, the 0.71-inch Round LCD Display Module offers a sleek and colourful visual output for a wide range of electronics and embedded projects. Designed with an IPS panel and a 160×160 pixel resolution, this display delivers sharp visuals and a wide viewing angle, making it ideal for handheld devices, wearable tech, dashboards, and educational tools. Its SPI interface allows for seamless connection with popular development boards like Raspberry Pi Pico, ESP32, and Arduino, enabling rapid prototyping for both commercial applications and STEM learning environments.

Technical Specifications

Display Type	0.71-inch Round IPS LCD	Resolution	160 × 160 pixels
Display Size	18 × 18 mm	Dimensions	20.12 × 22.3 mm
Pixel Pitch	37.5 × 112.5 µm	Colour Depth	65K colours
Operating Voltage	3.3V / 5V	Driver IC	GC9D01
Communication Interface	4-wire SPI	Viewing Angle	Wide (IPS technology)

How to Use

This display is controlled via a 4-wire SPI interface, reducing the number of IO pins needed for communication. It is compatible with a variety of popular microcontrollers and development platforms including Raspberry Pi Pico, ESP32, and Arduino boards. To integrate it into a project:

Connect the SPI pins from your controller to the corresponding pins on the module.
Ensure the power supply matches the required 3.3V or 5V levels.
Use the GC9D01 driver library compatible with your platform to initialise and control the display.
Display text, graphics or UI elements based on your application needs.

For a complete guide, refer to the Waveshare Wiki, which includes wiring diagrams, example code, and setup instructions.

What's Included

1× 0.71-inch Round LCD Display Module
1× SH1.0 Cable

Compatibility

This module supports a wide range of controllers and development platforms that offer SPI communication. Some commonly used compatible boards include:

Raspberry Pi Pico
ESP32/ESP8266
Arduino UNO/Nano/Pro Mini (with 3.3V/5V logic compatibility)
STM32 Blue Pill
Micro:bit (via SPI with level shifter)

Additional Resources

Wiki: www.waveshare.com/wiki/0.71inch_LCD_Module
