1.69inch LCD Display Module (SPI, 240x280)

Rating:

100% of 100

2 Reviews

SKU: WS-24382 Brand: Waveshare

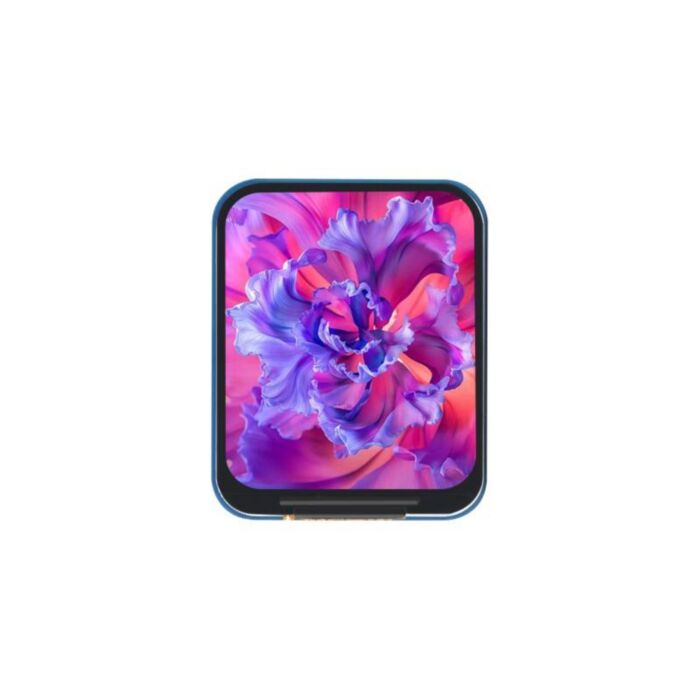

1.69inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS, 262K Colors

$15.50 AUD, inc GST

$14.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $13.53 (exc GST)
25+ $13.11 (exc GST)

1.69inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS, 262K Colors

Embedded ST7789V2 driver chip, Using SPI Interface

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

Features at a glance

240×280 resolution, 262K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications

Operating voltage	3.3V / 5V	Resolution	240 × 280 pixels
Communication Interface	4-wire SPI	Display size	27.97 × 32.63mm
DISPLAY PANEL	IPS	PIXEL SIZE	0.11655 × 0.11655mm
Driver	ST7789V2	Module size	31.50 × 39.00mm
Weight:	0.014 kg

Onboard Voltage Translator

Compatible With 3.3V / 5V Power input

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight

Hardware connection

Connecting with Raspberry Pi

Connecting with Arduino board

Connecting with STM32

Dimensions

Resources

Wiki

What's included

1.69inch LCD Module x1
MX1.25 8PIN cable x1
