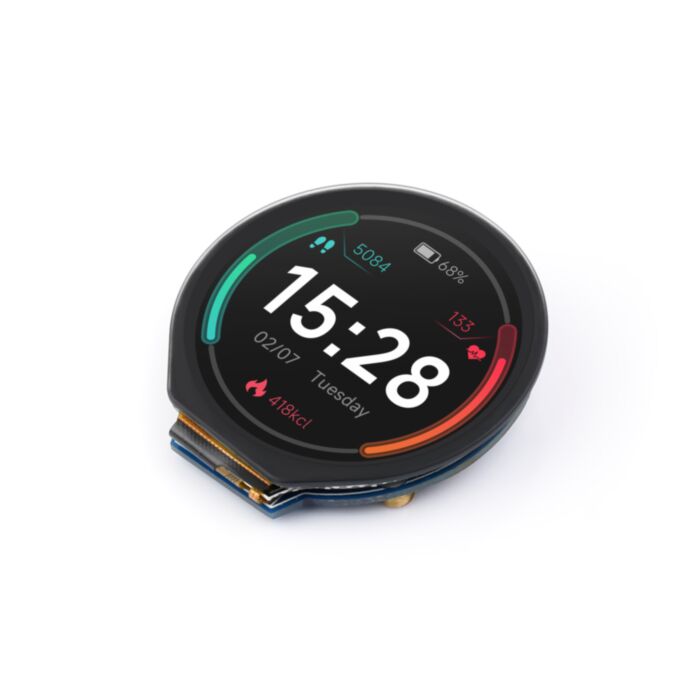

1.28inch Round LCD Display Module with Touch, (240×240 Pixels)

SKU: WS-24155 Brand: Waveshare

1.28inch Round LCD Display Module with Touch panel, 240×240 Resolution, IPS, SPI And I2C Communication...

$31.05 AUD, inc GST

$28.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $27.10 (exc GST)
25+ $26.25 (exc GST)

1.28inch Round LCD Display Module with Touch panel, 240×240 Resolution, IPS, SPI And I2C Communication

Features

240×240 resolution, 65K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime
Embedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi/Raspberry Pi Pico/Arduino/STM32
Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)

Specifications

Operating voltage	3.3V / 5V	Resolution	240 × 240 pixels
Display Driver	GC9A01	Display Interface	4-wire SPI
Touch Driver	CST816S	Touch Interface	I2C
DISPLAY PANEL	IPS	Touch Type	Capacitive
Display size	F32.4mm	PIXEL SIZE	0.135 × 0.135 mm
Module size	39.89 × 38.50mm F38.50mm

Dimensions

Resources

Wiki for Round Display with Touch

This product is listed in:

Displays & Screens>Round Displays
