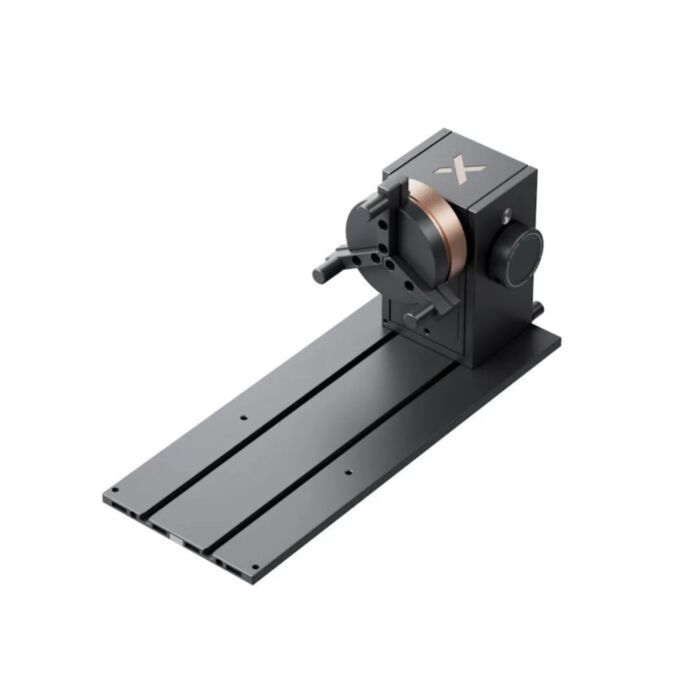

xTool RA3 Lite Rotary Attachment for M2

Cylinders, spheres and rings become engravable surfaces on the xTool M2, driven by a magnetically mounted rotary platform that reconfigures between holding modes without a single screw.

Rotary setups have traditionally been the slowest part of personalisation projects - unbolting jaws, re-shimming for each new diameter, then re-tuning alignment before every job. The MagSwap™ magnetic mounting removes that entirely: jaw chucks, stud components and the support module all locate by magnet and click into place.

This is the M2-exclusive variant. Setup relocates your laser module onto the included horizontal laser holder, and two positioning plates key the baseplate to a repeatable position inside the machine, so alignment can be kept even after being packed away between jobs. Workpieces from 0–100 mm in diameter are supported, driven through xTool Studio.

Three jaw configurations cover the range: cylindrical jaws for everyday work, cylindrical plus T-shaped jaws for large or smooth-walled vessels, and extended jaws for smaller items. Each mounts for internal or external clamping, so hollow workpieces can be gripped from the inside.

Features

• Swap between chuck, sphere and ring modes in seconds — magnetic quick-release mounting means no screws, wrenches or downtime between jobs

• Grips large or smooth-walled items securely by combining cylindrical and T-shaped jaws in the outermost chuck positions - the configuration xTool recommends for mugs with handles

• Extended jaws suit workpieces under 80 mm, mounted in the middle or innermost holes

• Engrave the inside of hollow workpieces by reversing the jaws to internal clamping

• Stud components hold rings securely for band engraving

• The height-adjustable support module steadies long or heavy workpieces on two wheels, and can sit outside the baseplate when work is especially long

• Reach non-cylindrical and tapered vessels through xTool Studio's modelling process, including full-wrap engraving on revolving vases

• An included tape measure covers manual diameter entry when automatic measurement isn't available

• A laser shield is supplied for use with the 10 W and 20 W laser modules

• Genuine xTool accessory — fits the M2 and its software without adapters or workarounds

Specifications

Resources

• xTool Rotary Attachment 3 Lite User Guide
