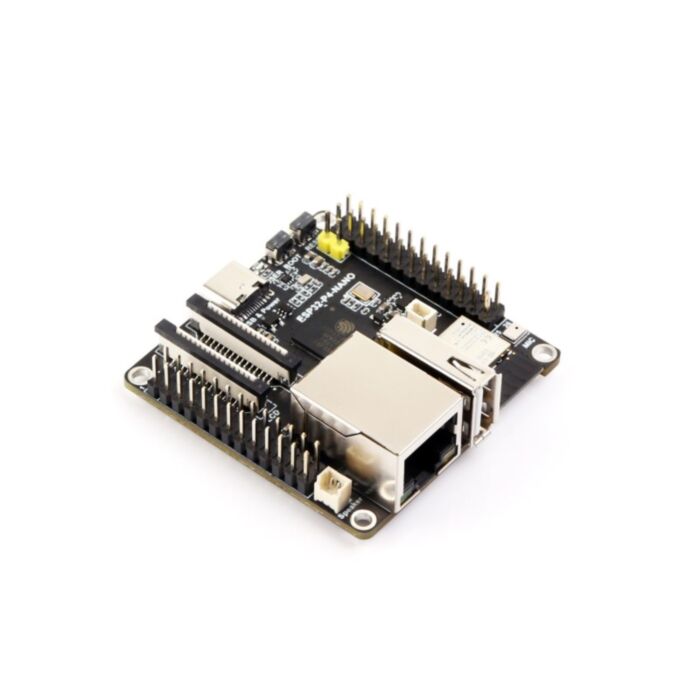

ESP32-P4 Nano Wi-Fi 6/BLE Dev Board
Available with a lead time
Expect dispatch between Jun 09 and Jun 10
The ESP32-P4 Nano is a compact yet powerful development board built around the ESP32-P4 chip, featuring RISC-V dual-core and single-core processors, Wi-Fi 6 and Bluetooth 5/BLE. With rich human-machine interfaces and robust security features, it’s designed for advanced edge computing and secure IoT applications.
Whether you’re prototyping high-security devices, building interactive displays or streaming sensor data, the ESP32-P4 Nano provides the performance and flexibility you need, from MIPI-CSI camera projects to PoE-powered network deployments.
Technical Specifications
- MCU: ESP32-P4 with RISC-V 32-bit dual-core and single-core processors
- Memory: 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2 cache, 32 KB LP SRAM, 8 KB TCM; onboard 32 MB PSRAM & 16 MB NOR flash
- Peripherals: MIPI-CSI, MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI
- Connectivity: Wi-Fi 6 (2.4 GHz), Bluetooth 5/BLE, USB 2.0 OTG HS, 100 Mbit Ethernet, SDIO 3.0 TF-card slot
- GPIO: 28 programmable pins via 2×13 headers
- Security: Secure Boot, Flash Encryption, cryptographic accelerators, true RNG
- Audio & Power: onboard microphone, 8Ω 2 W speaker header, USB-C power/programming, optional PoE module
How to Use/Installation
- Connect a USB-C cable to a PC or 5 V supply. To flash firmware, hold the BOOT button while resetting to enter download mode.
- For wired networking or PoE, fit an optional PoE module onto the PoE header and plug in an Ethernet cable.
- Attach a display via a 2-lane MIPI-DSI cable (e.g. Waveshare 10.1 inch DSI LCD).
- Connect a camera using a 2-lane MIPI-CSI cable to support modules such as the Raspberry Pi Camera (B).
- Insert a TF (microSD) card into the SDIO 3.0 slot for data logging or file storage.
Compatibility
- MIPI-DSI displays (2-lane), e.g. Waveshare 10.1 inch DSI LCD
- MIPI-CSI cameras, including Raspberry Pi Camera (B)
- Power backup via rechargeable RTC batteries
- Optional PoE modules for combined power and 100 Mbit Ethernet
- Standard USB-C cables for power, debugging and firmware uploads
Additional Resources
What’s Included
- ESP32-P4 Nano development board × 1
- 8 Ω 2 W speaker × 1
