W5500 Ethernet with POE Control Board(Arduino Compatible)

Please note: Some of the DFRobot support material for this product recommends splicing together a legacy version of the Ethernet library, there's now no need to as the Ethernet2 library works with no modification

Skip to the beginning of the images gallery

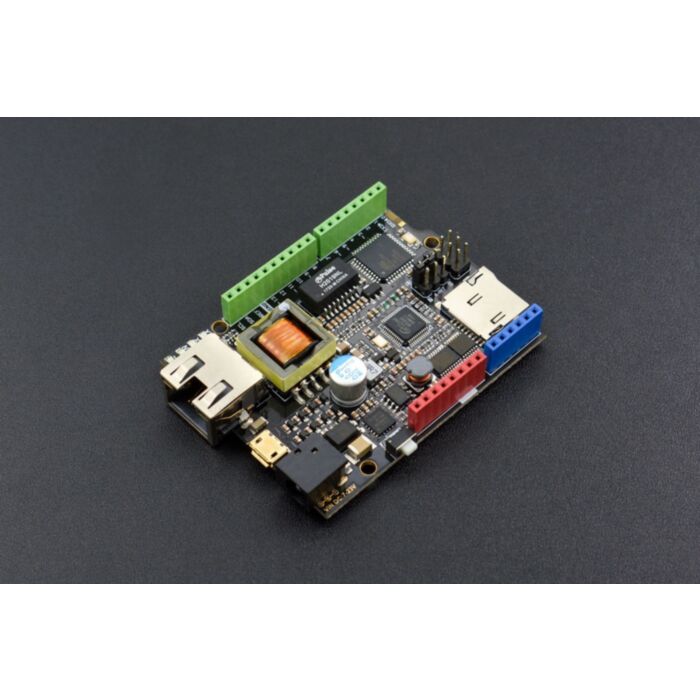

W5500 Ethernet with POE Control Board(Arduino Compatible)

SKU: DFR0342 Brand: DFRobot

W5500 Ethernet with POE Mainboard is a new member in our Ethernet family. It is based on the ATmega32u4 and W5500 Ethernet chip, which is quite useful to most IOT projects.

$78.50 AUD, inc GST

$71.36 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 29 and May 06

Quantity Discounts:

6-12 $69.22 (exc GST)
12+ $67.80 (exc GST)

Introduction

W5500 Ethernet with POE Mainboard is a new member in our Ethernet family. It is based on the ATmega32u4 and W5500 Ethernet chip, which is quite useful to most IOT projects.

W5500 chip is a Hardwired TCP/IP embedded Ethernet chip that provides easier Internet connection to embedded systems. It enables users to have the Internet connectivity in their applications just by using the board in which TCP/IP stack, 10/100 Ethernet MAC and PHY embedded. W5500 Ethernet Board is uses a high-efficiency SPI protocol, which supports 80 MHz speed for the high speed network communication. In order to reduce power consumption, it also provides WOL (Wake on LAN) and power down mode.

It has the same package size with Arduino Leonardo, and is compatible with most of Arduino shields and sensors. With a safer and more professional power regulation chip, the system can work under much more complex environments. And forget about power supply issues, since it work with POE power supply. Convenient huh?

Version Update: V2.0 has upgraded its POE power regulation circuit. which makes POE power more reliable.

Specifications

Microcontroller: Atmel Atmega32u4 (Arduino Leonardo)
External Input Voltage Plug (recommended): 7V~20V DC
External Input Voltage Plug (limits): 6-23V
POE Input Voltage: 48V AC/DC (802.3af standard PD device)
Digital I/O Pins: 20
Analog I/O Pins: 6
DC Current per I/O Pin: 40 mA
Flash Memory: 32 KB (ATmega32u4) of which 4KB used by bootloader
SRAM: 2 KB (ATmega32u4)
EEPROM: 1 KB (ATmega32u4)
Clock Speed: 16 MHz
PHY: WIZnet W5500
PHY Clock Speed: 25MHz
Dimension: 73.5x53.5x15mm (2.89x2.11x0.59")

Documents

Shipping List

W5500 Ethernet with POE Mainboard x1
Green acrylic board x1
Screws x1
