USB Mini-B connector breakout board, bottom view with dimensions. |
---|

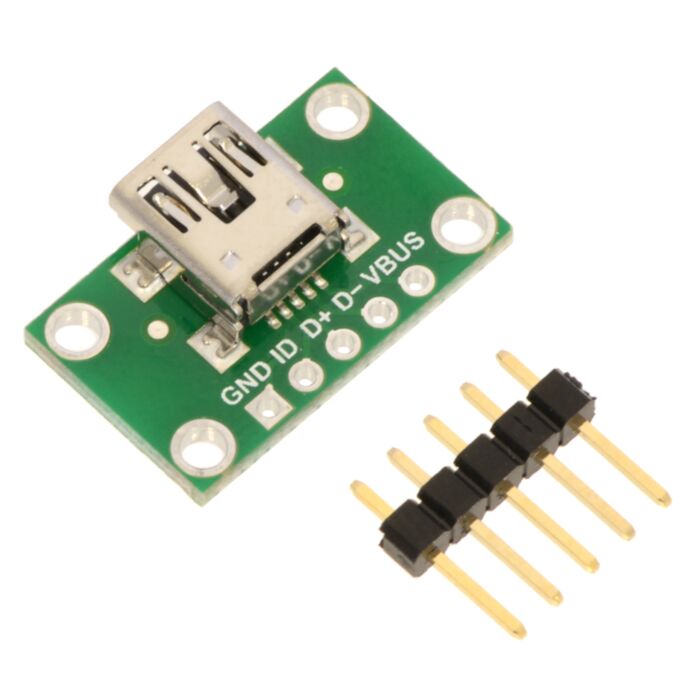

This board breaks out the VBUS, GND, D-, D+ and ID pins of a USB Mini-B connector. The VBUS and GND pins can be used to power your project from USB, while the D- and D+ pins give you access to the USB differential data signals. Each of these pins, along with the ID pin, are broken out into a 1×5 row of 0.1"-spaced pins on the board. The included 1×5 straight male header can be soldered to these pins to allow the board to be used with perfboards, solderless breadboards, and 0.1" connectors.
This tiny unit measures only 0.52" × 0.85" (0.55" × 0.85" including its USB Mini-B connector) and has four 0.086" diameter mounting holes for #2 or M2 screws.
|
|
Pololu also carry a USB Micro-B connector breakout board and two different versions of USB 2.0 Type-C connector breakout boards (usb07a and usb07b).
Additionally, Pololu have two power muxes that double as USB Micro-B breakout boards: the FPF1320 carrier and the TPS2113A carrier. These latter two power multiplexers make it easy to have a device that can be powered from both USB and an external supply.
People often buy this product together with:
CP2104 USB-to-Serial Adapter Carrier |
0.1" (2.54mm) Crimp Connector Housing: 1x2-Pin 25-Pack |
USB 2.0 Type-C Connector Breakout Board (usb07a) |
Dimensions
Size: | 0.55" × 0.85" × 0.23"1 |
---|---|
Weight: | 1.5 g2 |
Identifying markings
PCB dev codes: | usb04a |
---|---|
Other PCB markings: | 0J7721 |
