Compact ESP32-S3 dev board with switchable onboard/u.FL antenna, USB-C, LiPo charging and CircuitPython pre-installed, programmable with MicroPython, Arduino or ESP-IDF.
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 11th of Nov
Recommended Essentials:

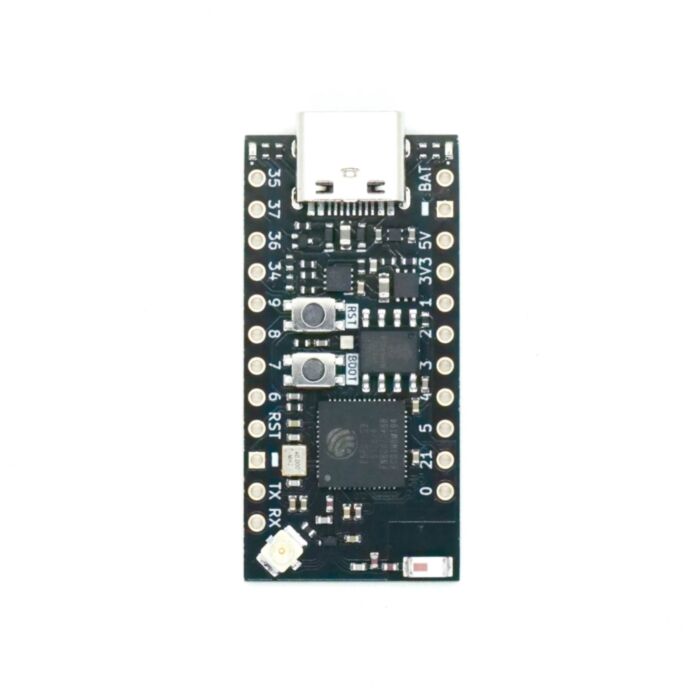

Take your next compact IoT build further with TinyS3[D] - an ESP32-S3 development board that pairs flexible radio options with maker-friendly power and I/O.
Switch between the onboard 3D high-gain antenna and a u.FL external antenna in firmware, then prototype fast with native USB, battery charging and plenty of GPIO on a board smaller than your thumb. From low-power sensor nodes to USB projects and wireless prototypes, TinyS3[D] gives you WiFi and Bluetooth LE 5 connectivity, CircuitPython out of the box, and a clean path to ESP-IDF, Arduino, MicroPython or PlatformIO when your project requires.
uFL antenna not included.
| Microcontroller | ESP32-S3 with dual 32 bit Xtensa LX7 cores, up to 240 MHz |
| Ultra Low Power | RISC-V ULP co-processor; ultra-low deep sleep current |
| Wireless | 2.4 GHz WiFi 802.11 b/g/n; Bluetooth LE 5 + Mesh |
| Memory | 8 MB QSPI Flash + 8 MB QSPI PSRAM |
| Antenna options | Onboard 3D high-gain antenna and u.FL connector; RF switch controllable in code; onboard antenna selected by default |
| USB | USB-C connector with back-feed protection; native USB + USB Serial JTAG |
| Power | 700 mA 3.3 V LDO regulator |
| Battery | LiPo battery charging; pads on the back for JST PH connector; I2C battery fuel gauge |
| I/O | 17 GPIO; 5 V sense pins |
| Indicators | Low-power RGB LED |
| Dimensions | 36.3 x 17.8 mm; max thickness 4.3 mm at the USB-C end |
| Compatibility | Compatible with TinyPICO and TinyS2 families |
| Pre-installed firmware | CircuitPython with UF2 bootloader |
