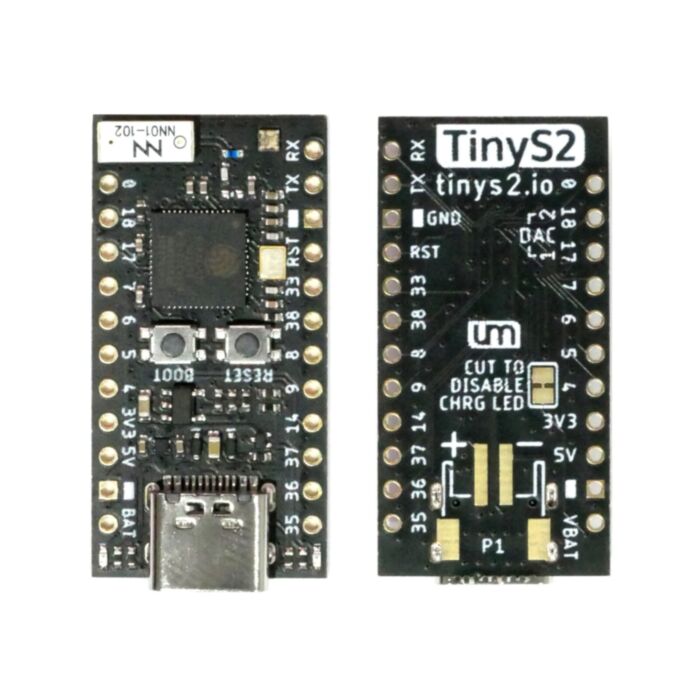

TinyS2 - ESP32-S2

Rating:
100% of 100
SKU: CE08166 Brand: Unexpected Maker
Introducing the TinyS2 - The Tiny Mighty ESP32-S2 development board in the TinyPICO format! Ships with a set of male headers and JST connector that you...
$28.73 AUD, inc GST
$26.12 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 19th of Apr

Quantity Discounts:

  • 10-25 $25.07 (exc GST)
  • 25+ $24.29 (exc GST)
- +

16 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Features & Specifications

  • 32-bit 240 MHz single-core processor

  • 4 MB SPI Flash

  • 2 MB extra PSRAM

  • 2.4 GHz Wi-Fi - 802.11b/g/n

  • 3D high gain antenna

  • 700 mA 3.3 V LDO regulator

  • Optimised power path for low-power battery usage

  • LiPo battery management

  • Power (red), Charge (orange) LEDs

  • USB-C + Reverse USB power protection

  • VBAT voltage check and VBUS presence detection

  • 17x GPIO

  • Onboard RGB LED

  • TinyPICO format

Ships with CircuitPython pre-installed!

The TinyS2 ships with the latest version of CircuitPython 6 that supports the ESP32-S2. It also ships with the UF2 bootloader, so you can easily update your TinyS2 with the latest CircuitPython firmware, whenever you desire.

As newer versions of CircuitPython are released, you are able to update as you require from ciruitpython.org

Code any way you like!

There is also early ESP-IDF and Arduino support if you prefer coding in C++ and I have an early MicroPython port available as well. Visit the TinyS2 product page for more details.
