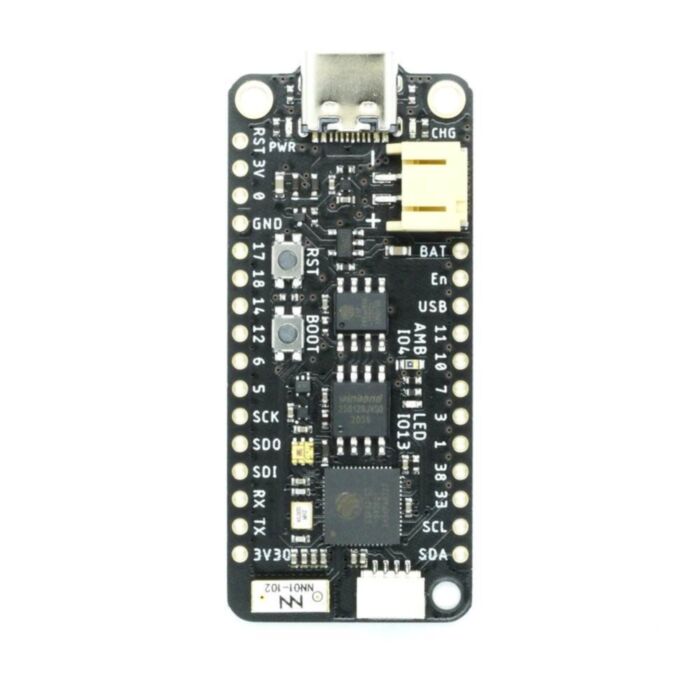

FeatherS2 - ESP32-S2

SKU: CE08592 Brand: Unexpected Maker
The full-featured ESP32-S2 based development board in a Feather format from Unexpected Maker.
$34.96 AUD, inc GST
$31.78 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 15th of Oct

Quantity Discounts:

  • 10-25 $30.51 (exc GST)
  • 25+ $29.55 (exc GST)
- +

12 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The full-featured ESP32-S2 based development board in a Feather format from Unexpected Maker. The FeatherS2 is a power house, fully souped up with 16 MB of Flash memory (for firmware and file storage) and 8 MB of QSPI-based external PSRAM so you can have massive storage buffers.



2x LDO Voltage Regulators?

Yup! The first one is for the general operation of the board and the ESP32-S2, RAM and Flash.

The second LDO is for you to use to connect external 3V3 modules, sensors and peripherals, and it has programmable EN control tied to GPIO21 + it’s connected to the deep sleep capabilities of the S2, so if the S2 goes into deep sleep, the 2nd LDO is automatically shut down for you!

Ships with CircuitPython pre-installed!

The FeatherS2 ships with CircuitPython pre-installed as well as the UF2 bootloader, so you can easily update your FeatherS2 with the latest CircuitPython firmware, whenever you desire.

As newer versions of CircuitPython are released, you are able to update as you require from ciruitpython.org

There is also ESP-IDF and Arduino support if you prefer coding in C++.



Features & Specifications

  • 32-bit 240 MHz single-core processor

  • 16 MB SPI Flash

  • 8 MB extra PSRAM

  • 2.4 GHz Wi-Fi - 802.11b/g/n

  • 3D antenna

  • 2x 700 mA 3.3 V LDO regulator

  • Optimised power path for low-power battery usage

  • LiPo battery management

  • Power (red), Charge (orange) & IO13 (blue) LEDs

  • 21x GPIO

  • USB-C

  • APA102 RGB LED (CLK IO45, DATA IO40)

  • ALS-PT19 Ambient Light Sensor (IO14)

  • QWIIC/STEMMA connector

  • Feather format

Resources

Schematic Diagram
