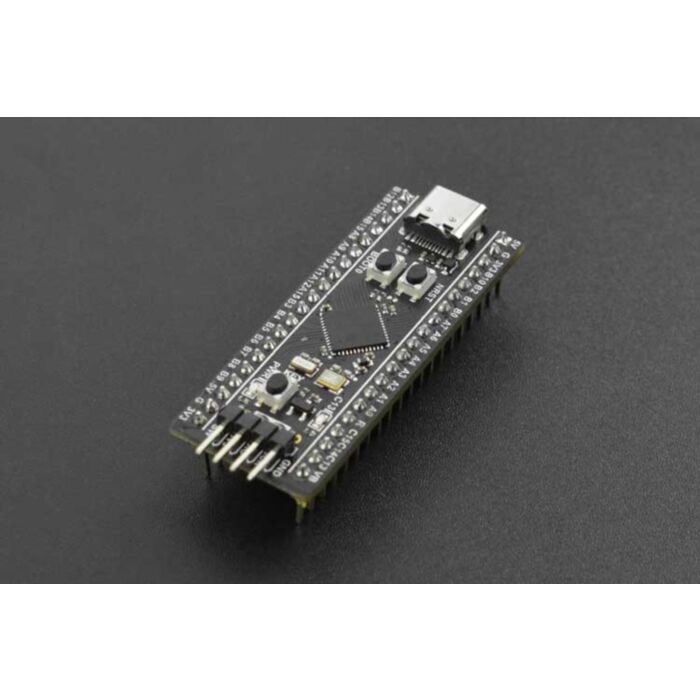

STM32F411 BlackPill Development Board

Rating:

100% of 100

SKU: DFR0864 Brand: DFRobot

This compact STM32F411 development board can be well embedded in your projects. Featuring the STM32F411CEU6, this chip has 512KB of ROM, 128KB of SRAM and runs at...

$27.05 AUD, inc GST

$24.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

10-25 $23.85 (exc GST)
25+ $23.36 (exc GST)

Introduction

This compact STM32F411 development board can be well embedded in your projects. Featuring the STM32F411CEU6, this chip has 512KB of ROM, 128KB of SRAM and runs at 100MHz. There is a spot on the bottom for SOIC flash memory, which allows you to solder SPI flash memory to give yourself more space for data logging or file storage.

The board features a Type-C connector and a 3.3V 100mA LDO regulator. Also, a diode is connected in series to prevent power backflow. There are both 25Mhz 9pF high-speed and 32.768Khz 6pF low-speed crystals on board.

This dev board is suitable for advanced users with STM32 development experience, we do not have a detailed tutorial usage for it.

Pinout Diagram

Features

STM32F411CEU6 100Mhz, 128KB RAM, 512KB ROM
25MHZ high-speed crystal & 32.768Khz 6PF low-speed crystal
Immersion gold technology and lead-free, gold-plated pin headers, more environmentally friendly
Flash pads have been reserved and USBDisk & FATFFS routines are provided
Support MicroPython programming, provide usable MicroPython firmware
Support Arduino programming
Support C language programming development
Version V3.0, there are 3 buttons: reset button, BOOT0 button, user button
Provide CMSIS-DAP firmware, which can be turned into a download burner
Use the latest original ST chip, high-quality crystal oscillator

Documents

Shipping List

STM32F411 Development Board x1
20Pin Straight Pin x2
4Pin Curved Pin x1

This product is listed in:

Development Boards>STM32
