SparkFun Soil Moisture Sensor (with Screw Terminals)

Rating:

100% of 100

SKU: SEN-13637 Brand: Sparkfun Guides (1)

The SparkFun Soil Moisture Sensor is a simple breakout for measuring the moisture in soil and similar materials. The soil moisture sensor is pretty straightforward...

$12.30 AUD, inc GST

$11.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 6th of Dec

Quantity Discounts:

10-25 $10.74 (exc GST)
25+ $10.40 (exc GST)

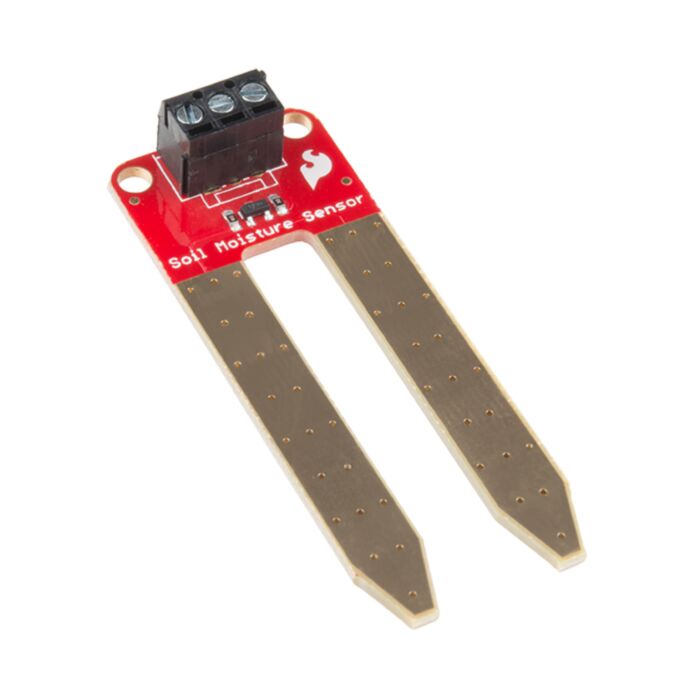

The SparkFun Soil Moisture Sensor is a simple breakout for measuring the moisture in soil and similar materials. The soil moisture sensor is pretty straightforward to use. The two large, exposed pads function as probes for the sensor, together acting as a variable resistor. The more water that is in the soil means the better the conductivity between the pads will be, resulting in a lower resistance and a higher SIG out. This version of the Soil Moisture Sensor includes a 3-pin screw pin terminal pre-soldered to the board for easy wiring and setup.

To get the SparkFun Soil Moisture Sensor functioning, all you will need is to connect the VCC and GND pins to your Arduino-based device (or compatible development board). You will receive a SIG out, which will depend on the amount of water in the soil. One commonly known issue with soil moisture senors is their short lifespan when exposed to a moist environment. To combat this, we've had the PCB coated in gold finishing (ENIG, or Electroless Nickel Immersion Gold).

Note: Check the Hookup Guide below for assembly and weatherproofing instructions, as well as a simple example project that you can put together yourself!

Get Started with the Soil Moisture Sensor Guide

Documents:

This product is listed in:

Sensors>Soil Moisture
