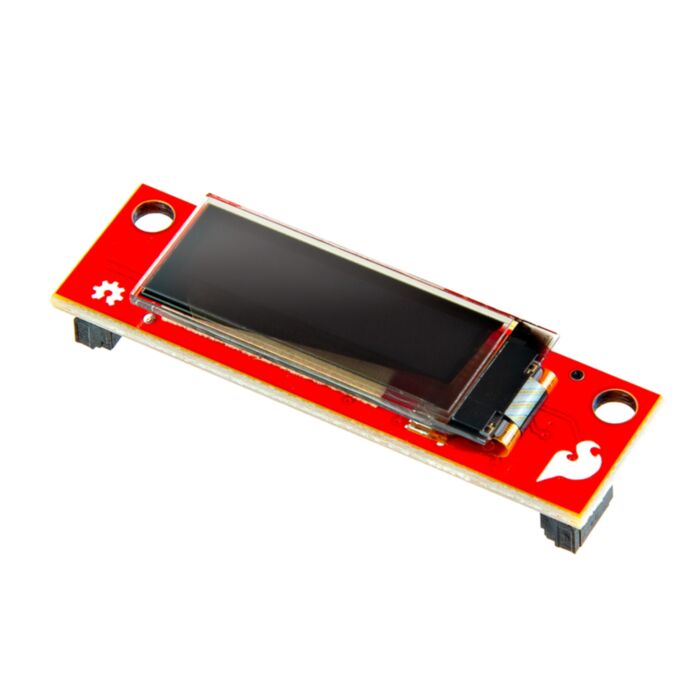

SparkFun Qwiic OLED Display (0.91 in., 128x32)

SKU: LCD-24606 Brand: Sparkfun

The SparkFun Qwiic OLED Display can display up to four lines of text and features 128x32 pixels in a small 0.91in. (diagonal) frame...

$17.95 AUD, inc GST

$16.32 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 27 and Dec 02

Quantity Discounts:

10-25 $15.83 (exc GST)
25+ $15.50 (exc GST)

The SparkFun Qwiic OLED Display can display up to four lines of text and features 128x32 pixels in a small 0.91in. (diagonal) frame. As an OLED, this display does not have a backlight layer (unlike LCDs); therefore, it’s thinner, consumes less power, and has higher contrast.

Thanks to an I²C command structure, the board's firmware maintains speed by updating only the part of the screen that changes. Computer graphics use this concept with "Dirty Rectangles" or "Bit blit" operations.

This version of the Qwiic OLED display includes two vertical Qwiic connectors on the back of the board to mount the board easily and keep the wires inside the enclosure. Note that the two mounting holes have also been moved to one side of the board.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started With the SparkFun Qwiic OLED Guide

Features

Operating Voltage: 3.3V via Qwiic Connector
Display IC: SSD1306
Screen Size 128px x 32px
Monochrome Blue-on-Black
Communication Protocols: I²C
I²C Address: 0x3C
2x Qwiic Vertical Connectors
Built-in I²C 4.7kO Pull-Up Resistors
I²C Jumpers for Pull-Up Resistors
Board Dimensions: 1.75in. x 0.50in. (44.45mm x 12.7mm)
Weight: 3.25g

Revision Change: For V1.1, Sparkfun switched the horizontal Qwiic connectors to vertical. Sparkfun also moved it to the back so that you can easily mount the board and keep the wires inside the enclosure. The vertical Qwiic connectors allows for a smaller board. The two mounting holes have also been moved to one side of the board.
