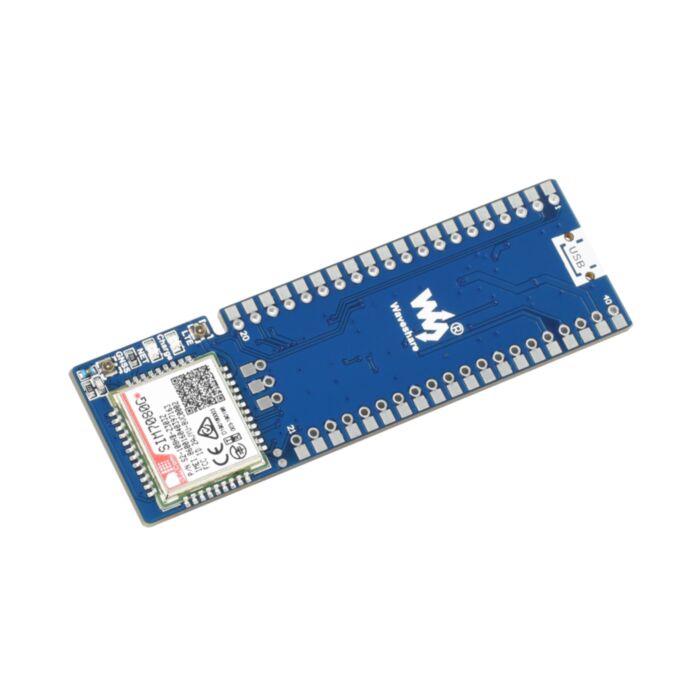

SIM7080G NB-IoT / Cat-M(eMTC) / GNSS Module for Raspberry Pi Pico, Global Band Support

Rating:
100% of 100
SKU: WS-20036 Brand: Waveshare
SIM7080G NB-IoT / Cat-M(EMTC) / GNSS Module For Raspberry Pi Pico, Global Band Support...
$49.20 AUD, inc GST
$44.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $42.94 (exc GST)
  • 25+ $41.60 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

  • $7+ Standard (5+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online)

Road transport only for this product. Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

SIM7080G NB-IoT / Cat-M(eMTC) / GNSS module for Raspberry Pi Pico, global band support SIM7080G NB-IoT / Cat-M / GNSS module for Pico

Features

The Pico-SIM7080G-Cat-M/NB-IoT is an NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System) module designed for Raspberry Pi Pico. It supports multiple NB-IoT frequency band, can be controlled via serial AT commands, and supports communication protocols like HTTP/MQTT/LWM2M/COAP, etc. Due to the advantages of low delay, low power, low cost, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring.

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • UART communication, serial AT commands control
  • Communication protocol support: TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT...
  • GNSS positioning support: GPS, GLONASS, BeiDou, and Galileo
  • Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery, or recharging it in turn
  • 2x LED indicators, for monitoring the module operating status
  • Onboard Nano SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
  • Comes with development resources and manual (MicroPython examples)

Specifications

  SIM7080G
Applicable region global applicable
Frequency band
NB-IoT B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B28/B66/B71/B85
Cat-M B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/ B19/B20/B25/B26/B27/B28/B66/B85
2G N/A
GNSS GPS, GLONASS, BeiDou, Galileo
Data rate
NB-IoT(Kbps) 136(DL)/150(UL)
Cat-M(Kbps) 589(DL)/1119(UL)
2G(Kbps) -
Others
Communication protocol TCP/UDP/HTTP/HTTPS/TLS/DTLS /PING/LWM2M/COAP/MQTT...
Power supply
Battery interface
Logic level
Module standalone current Idle mode: 10mA
Sleep mode: 0.65mA Sleep mode: 0.4mA
Backup mode: 8uA PSM mode: 3.4uA
Audio input/output N/A
Indicator
Switch Li-po battery power supply switch
SIM card NB-IoT / Cat-M card (1.8V ONLY)
Antenna connector LTE, GNSS
Dimensions 73.5 × 24.00mm

Raspberry Pi Pico header compatibility

The Pico can be SMD-mounted (left), or attached via female header (right)

Connecting with other expansion modules and antenna

Raspberry Pi Pico is NOT included. The pin headers are NOT soldered by default. Global band support of NB-IoT / Cat-M1

Pinout

NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

Outline Dimensions

Wiki: Pico-SIM7080G-Cat-M/NB-IoT

Shipping List
