Walter - LTE-M/NB-IOT Development Module

SKU: CE10231

A fully certified and connectivity-enabled development board that will take projects from the prototyping to the production phase.

$111.73 AUD, inc GST
$101.57 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 15th of Jul

- +

10 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

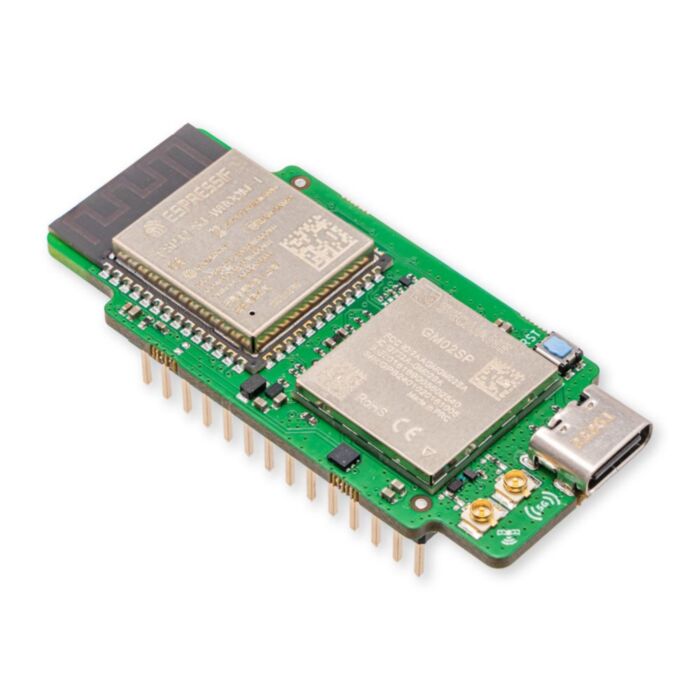

Walter is a compact IoT system-on-module (SoM) that integrates the power of the industry-respected ESP32-S3 microcontroller with a state-of-the-art Sequans GM02SP LTE-M/NB-IoT 5G modem and GNSS receiver.
Designed to deliver versatile wireless connectivity, the Walter supports Wi-Fi b/g/n, Bluetooth 5, and cellular communication in a tiny 24.8 x 55 mm footprint- ideal for any IoT project like, sensing, tracking, and control applications, where space and power efficiency matter.

Technical Specifications

  • Microcontroller: ESP32-S3-WROOM-1-N16R2, dual-core 32-bit LX7 CPU, with 16 MiB quad SPI flash, 2 MiB quad SPI PSRAM
  • Wireless Connectivity:
    • Wi-Fi 802.11 b/g/n (150 Mbps) with onboard PCB antenna
    • Bluetooth 5 Low Energy (2 Mbps) with onboard PCB antenna
    • Sequans GM02SP modem:
      • Dual-mode LTE-M / NB-IoT (NB1, NB2), compliant with 3GPP LTE Release 14 - antenna required
      • GNSS receiver supporting GPS and Galileo constellations with LNA + SAW filter - passive U.FL antenna required (Officially supported antenna coming soon)
  • Interfaces and I/O: 24 GPIO pins; UART, SPI, I²C, CAN, I²S, SD available on any GPIO; ADC, DAC, PWM integrated; USB Type-C for programming and debugging; reset button
  • Power Supply: 5.0 V via USB Type-C; 3.0–5.5 V via Vin pin (not to be used simultaneously); ultra-low quiescent current design
  • Power Consumption: Deep sleep current 9.8 µA total (8 µA ESP32-S3, 1 µA GM02SP, 0.8 µA DC-DC & LDO)
  • Size and Form Factor: 24.8 x 55 mm, 2.54 mm pin headers, breadboard friendly, pin- and footprint-compatible with former PyCom GPy module
  • Certifications: CE, UKCA, FCC, IC, RCM
  • Industrial temperature range: -40°C to +85°C
  • Software Ecosystem: Supported by ESP-IDF, Arduino, MicroPython, Toit; open-source libraries with transparent protocol offloading, robust error handling, and low-power optimisations

Compatibility

  • Use the Walter Feels carrier board to break out industry-standard protocols, and all of the features needed to accelerate development and deployment
  • Develop on a breadboard using traditional methods

Pinout Diagram

Walter Feels pinout diagram

Additional Resources

What’s Included

  • Walter system-on-module with ESP32-S3 and Sequans GM02SP modem
